KRIPAL Products

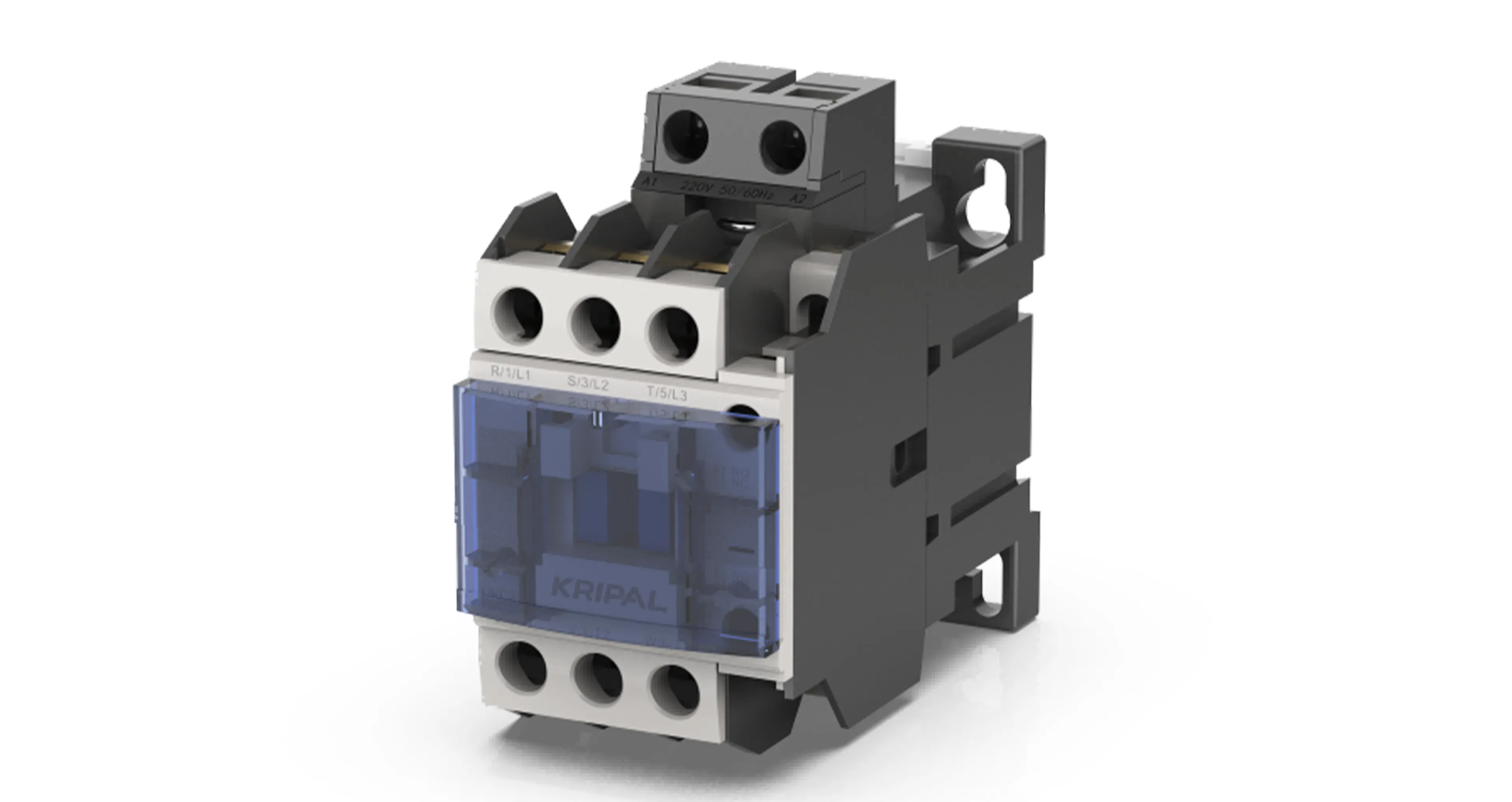

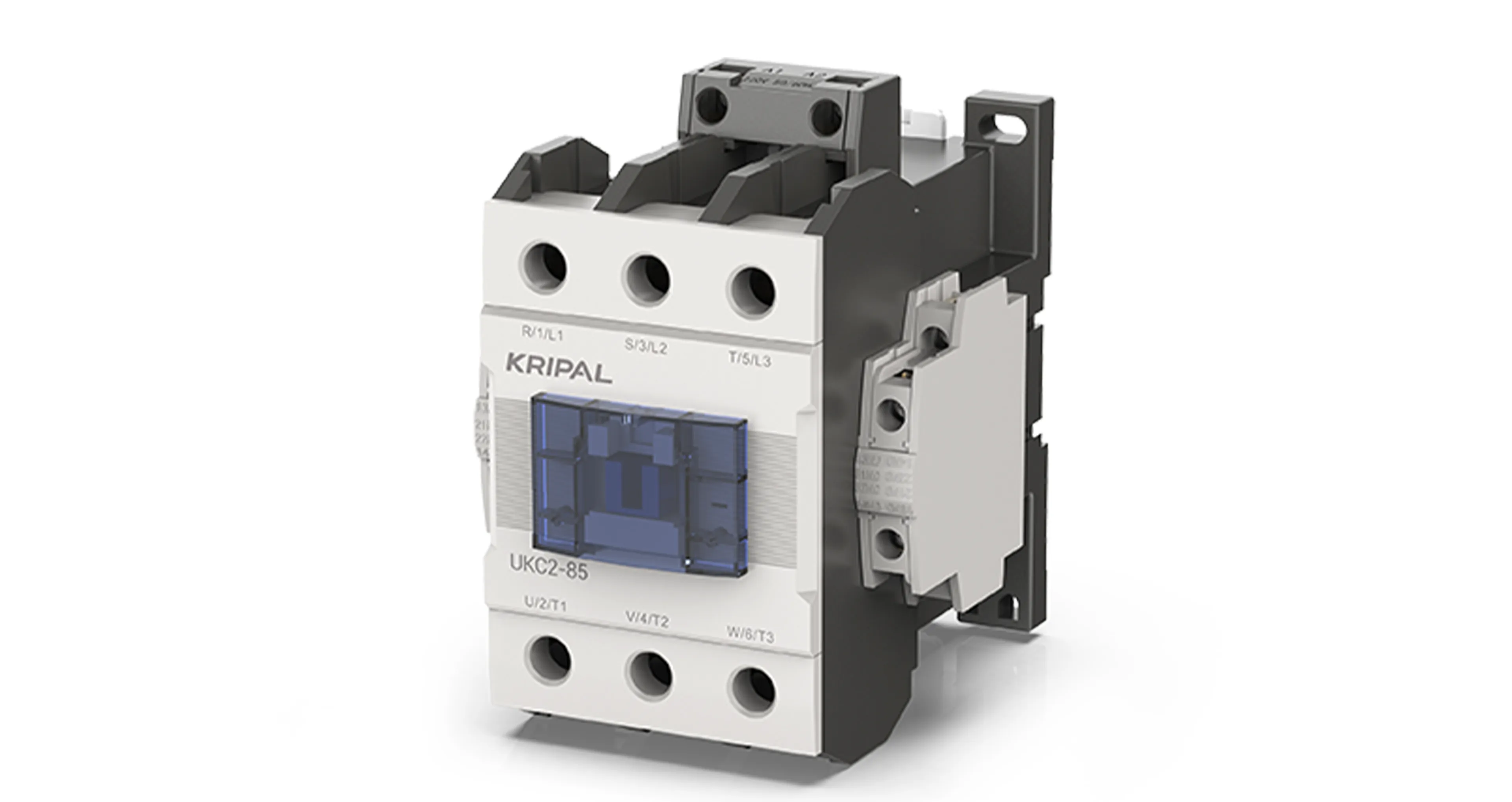

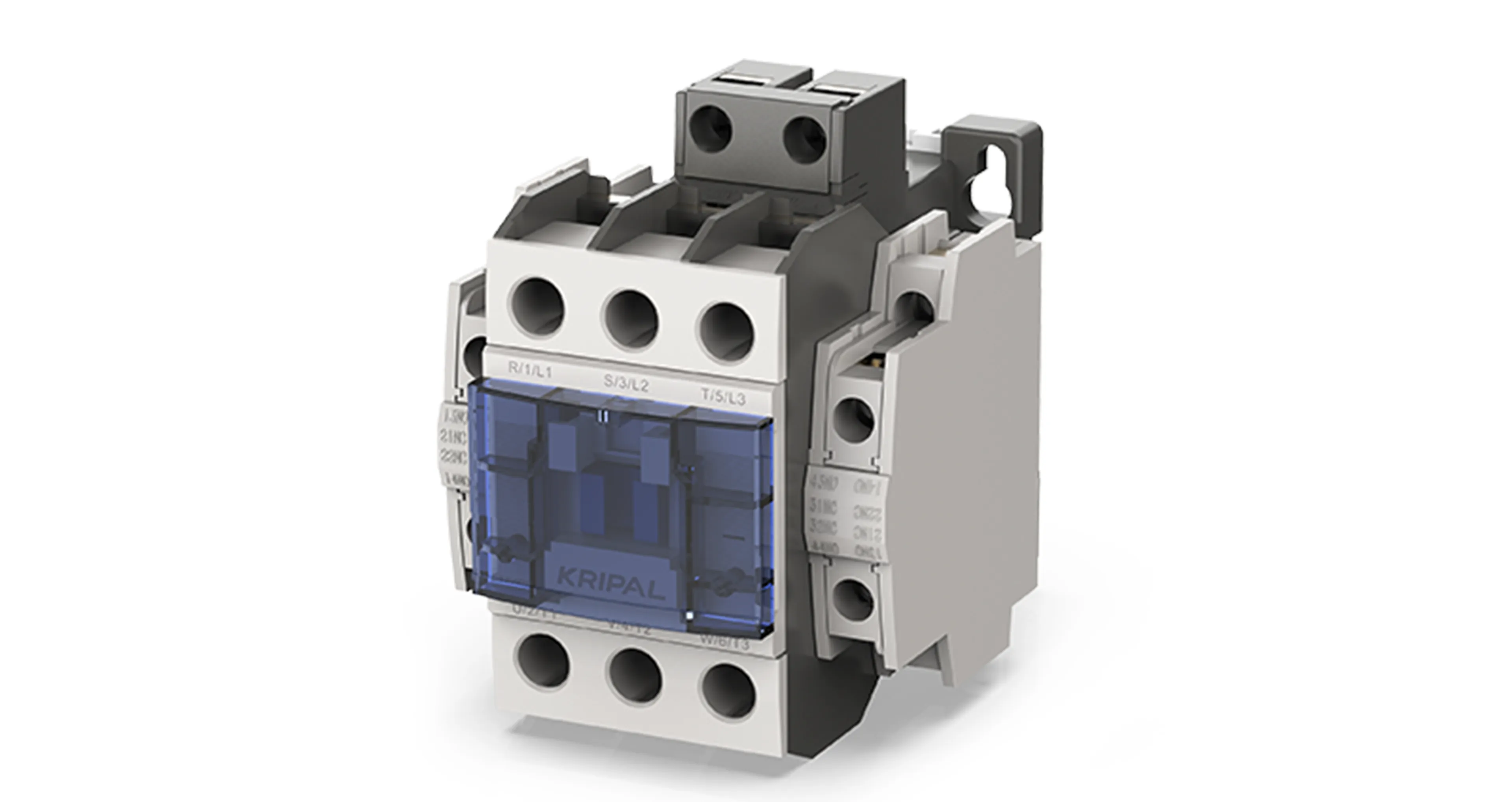

UKC2 Magnetic AC Contactor 9/12/18/22A 3-Pole Coil 24V 110V 220V 380V CE Certified KRIPAL UKC2 Series AC Contactors: Durable & Reliable Performance Engineered for exceptional durability, the KRIPAL UKC2 Series AC Contactor features a compact and robust structure that integrates key components such as the coil, main contacts, and auxiliary contacts. This solid construction ensures an extended service life and maintains outstanding performance even under demanding operating conditions. The UKC2 contactor is widely used in a variety of heavy-duty electrical applications, including the control of motors, lighting systems, and heating elements. Available in multiple sizes and configurations, it supports different voltage and current ratings to meet diverse industrial requirements. To ensure superior performance and safety, the UKC2 electromagnetic contactor can be seamlessly integrated with other control devices such as thermal overload relays and motor starters. This integrated design e

Four rated current levels for one frame 3 pairs of main contacts Design of electric shock proof safety cover Guide rail or screw installation Attachments can be mounted on top/side It can be directly plugged into the thermal overload relay

Four rated current levels for one frame 3 pairs of main contacts Design of electric shock proof safety cover Guide rail or screw installation Attachments can be mounted on top/side It can be directly plugged into the thermal overload relay

3 pairs of main contacts Wide coil voltage Installation of screw The accessory can be mounted at side. Be connected with the thermal overload relay directly

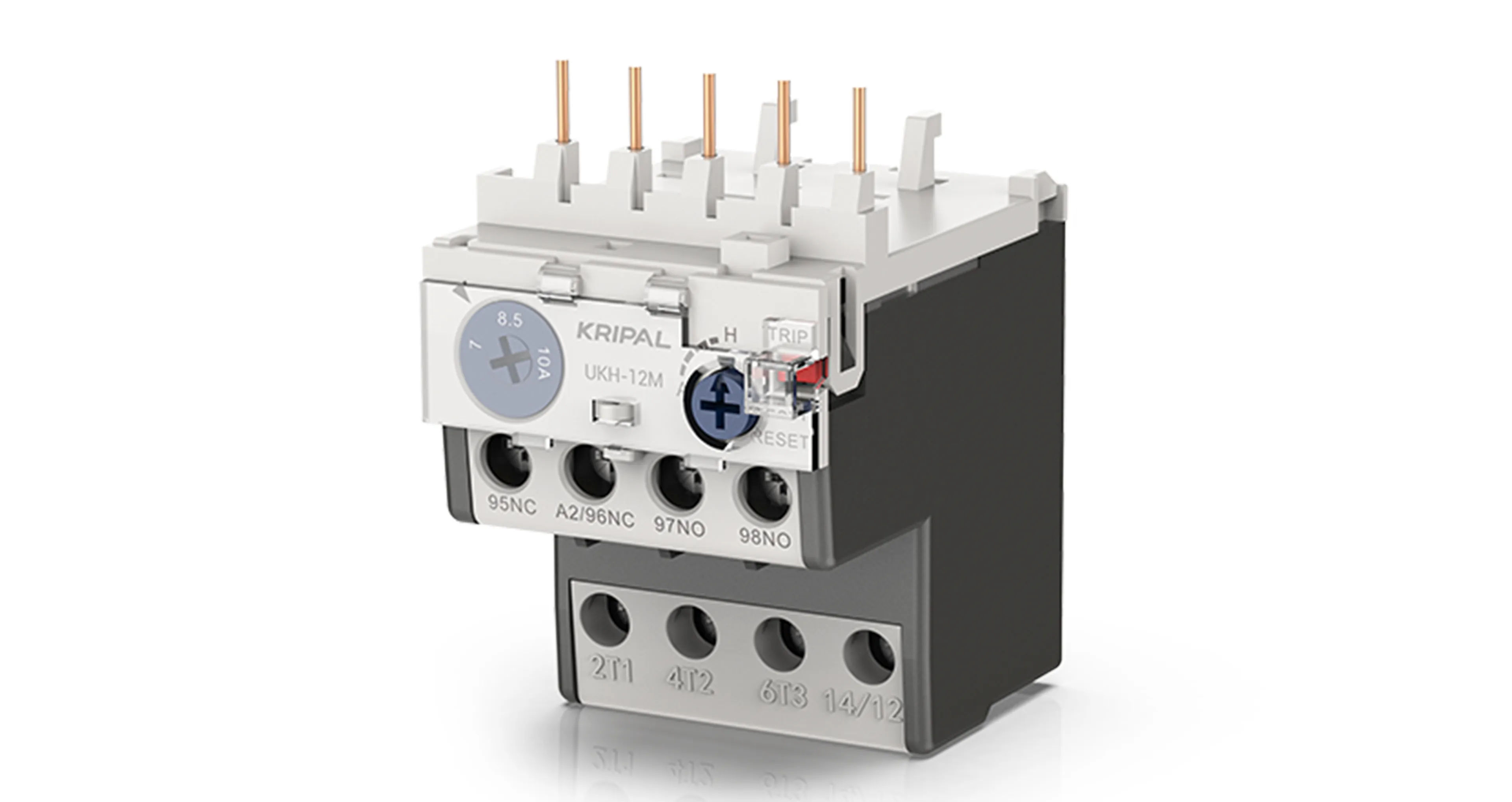

UKH Mini Thermal Overload Relay 0.1-16A Contact Rating 1NO + 1NC UKH Thermal Overload Relay is designed for circuits up to 660V, 50/60Hz, with a maximum rated operational current of 800A at 380V under the AC-3 duty category. It is used for the remote switching of circuits and, when combined with a suitable AC contactor or electronic protector, forms a reliable motor starter. This setup provides effective protection against potential overloads and is well-suited for the frequent starting and control of AC motors. This product is manufactured in compliance with the GB/T 14048.4 standard.

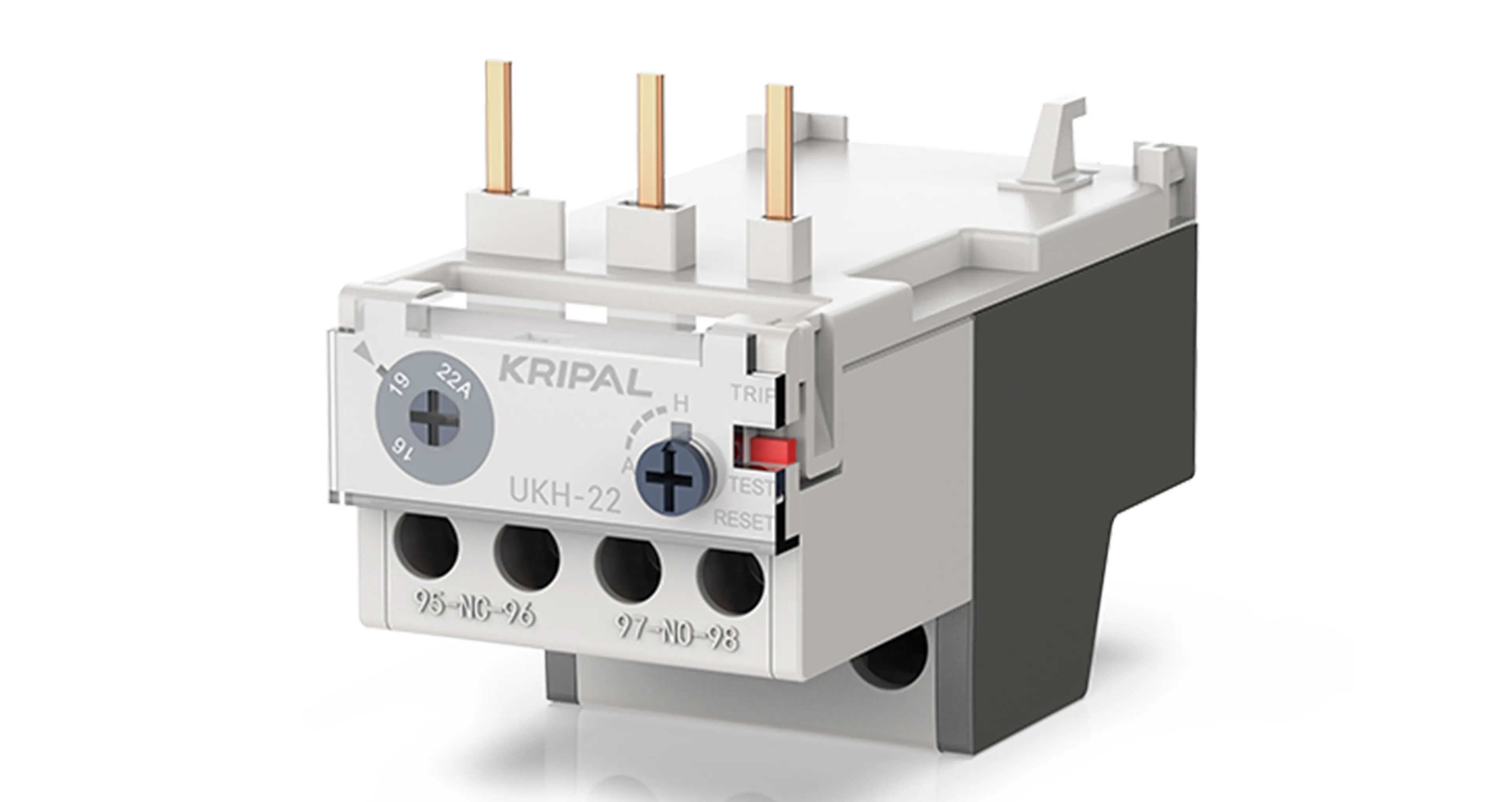

UKH-22 Thermal Overload Relay 0.1-22A Contact Rating 3P 1NO + 1NC UL Listed UKH Thermal Overload Relay is designed for circuits up to 660V, 50/60Hz, with a maximum rated operational current of 800A at 380V under the AC-3 duty category. It is used for the remote switching of circuits and, when combined with a suitable AC contactor or electronic protector, forms a reliable motor starter. This setup provides effective protection against potential overloads and is well-suited for the frequent starting and control of AC motors. This product is manufactured in compliance with the GB/T 14048.4 standard.

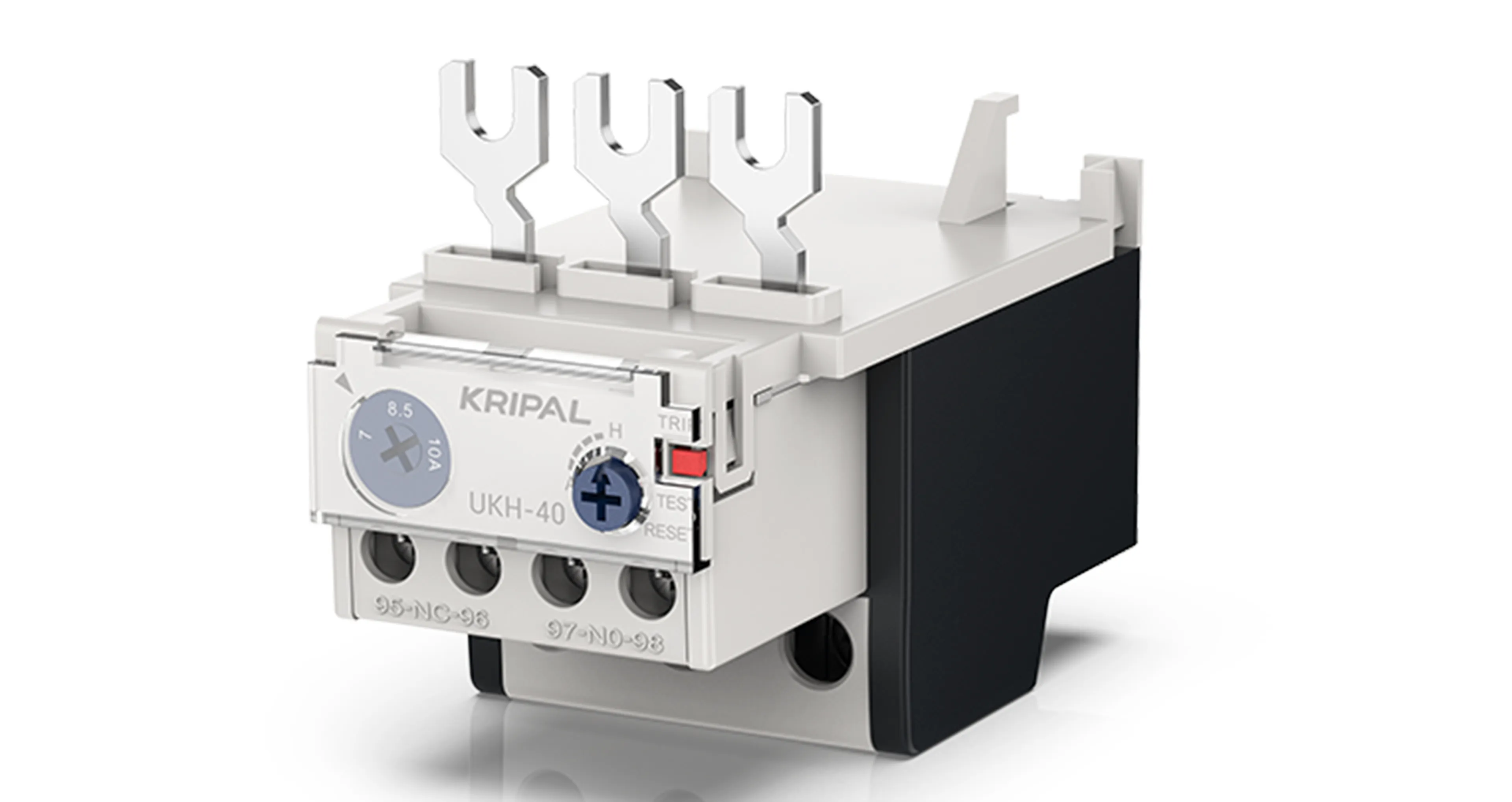

UKH-40 Thermal Overload Relay 4-40A Contact Rating 3P 1NO + 1NC UL Listed UKH Thermal Overload Relay is designed for circuits up to 660V, 50/60Hz, with a maximum rated operational current of 800A at 380V under the AC-3 duty category. It is used for the remote switching of circuits and, when combined with a suitable AC contactor or electronic protector, forms a reliable motor starter. This setup provides effective protection against potential overloads and is well-suited for the frequent starting and control of AC motors. This product is manufactured in compliance with the GB/T 14048.4 standard.

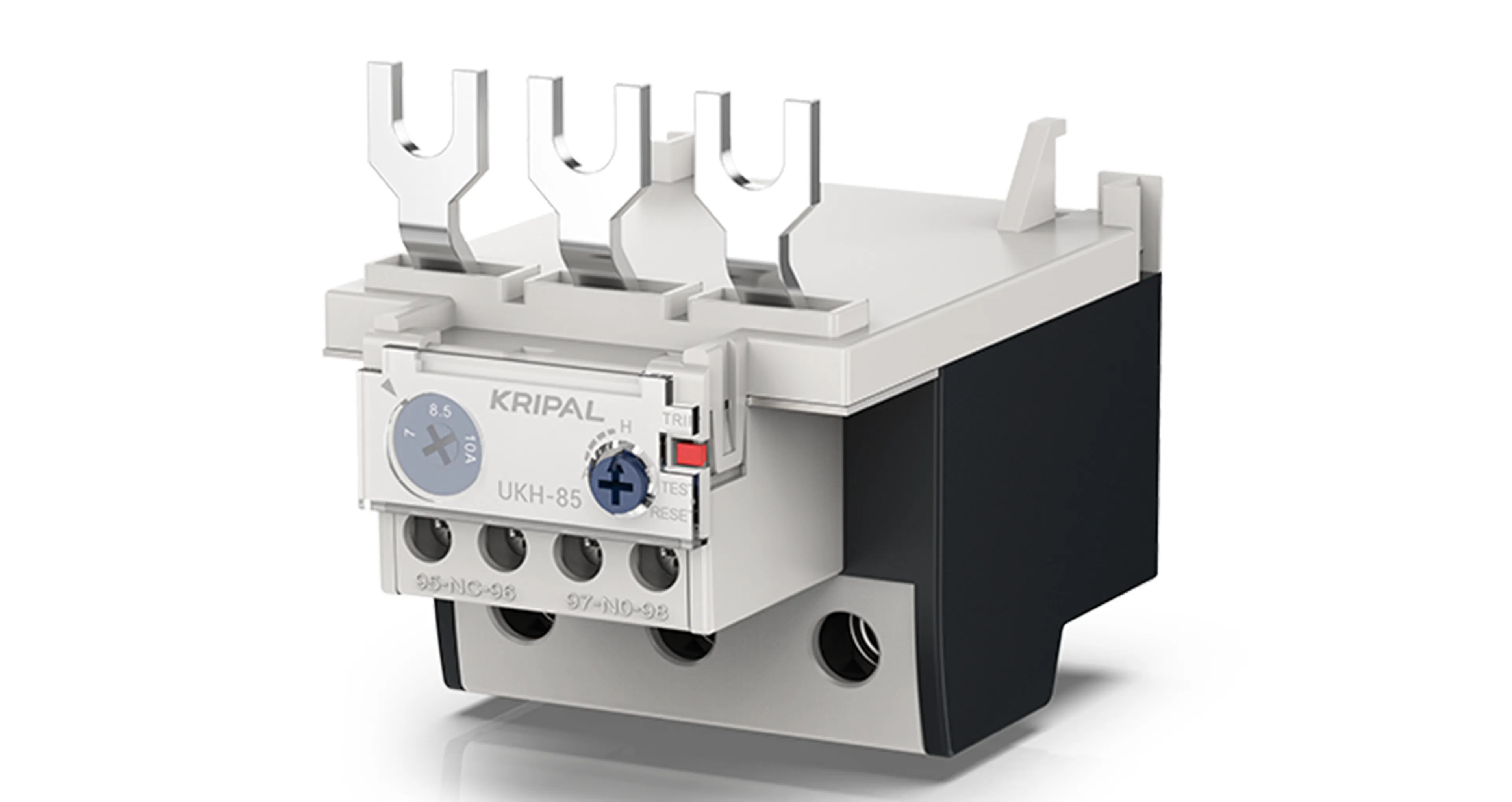

UKH-85 Thermal Overload Relay 7-85A Contact Rating 3P 1NO + 1NC UL Listed UKH Thermal Overload Relay is designed for circuits up to 660V, 50/60Hz, with a maximum rated operational current of 800A at 380V under the AC-3 duty category. It is used for the remote switching of circuits and, when combined with a suitable AC contactor or electronic protector, forms a reliable motor starter. This setup provides effective protection against potential overloads and is well-suited for the frequent starting and control of AC motors. This product is manufactured in compliance with the GB/T 14048.4 standard.

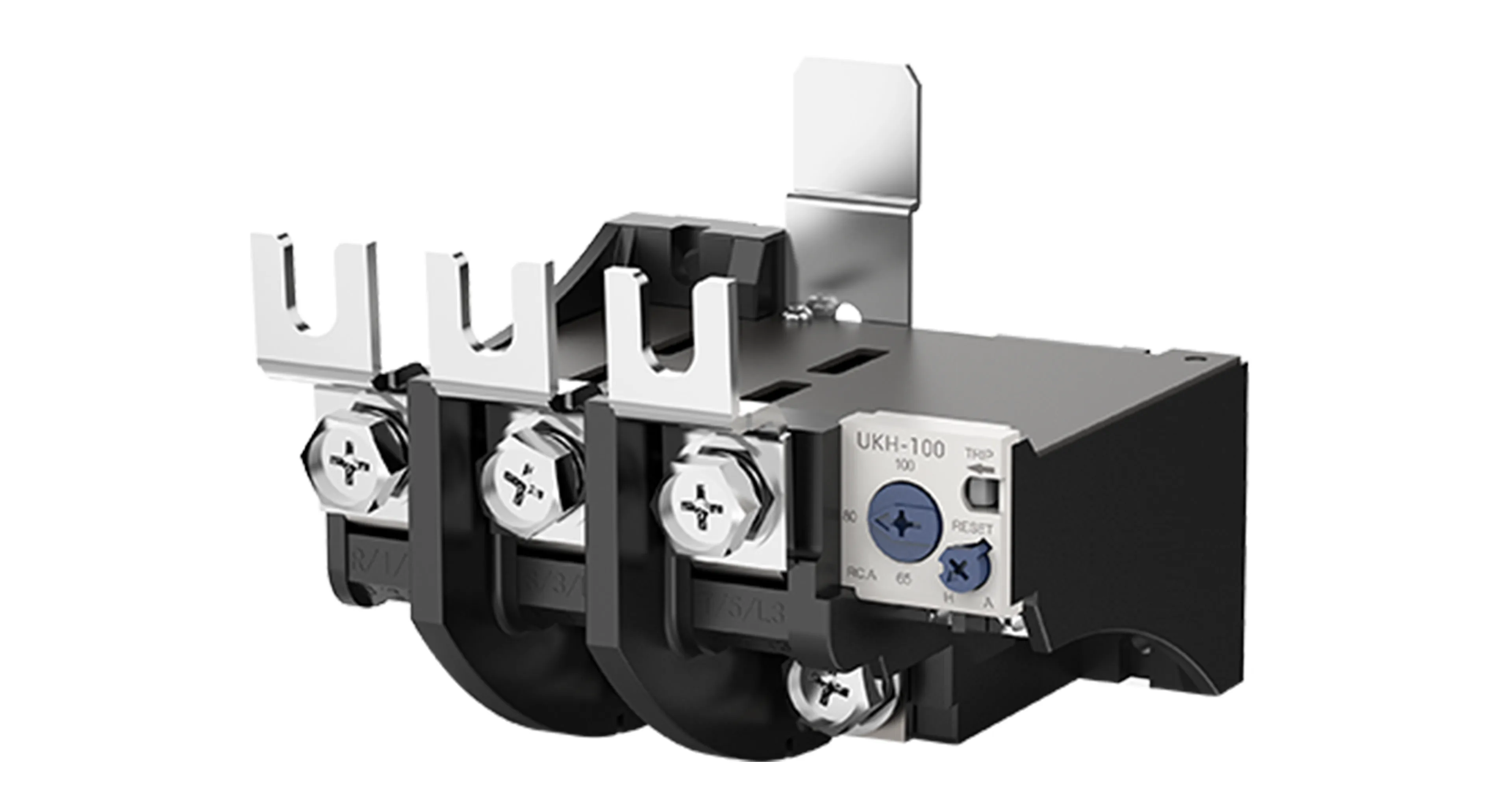

UKH-100 Thermal Overload Relay 34-125A Contact Rating 3P 1NO + 1NC UKH Thermal Overload Relay is designed for circuits up to 660V, 50/60Hz, with a maximum rated operational current of 800A at 380V under the AC-3 duty category. It is used for the remote switching of circuits and, when combined with a suitable AC contactor or electronic protector, forms a reliable motor starter. This setup provides effective protection against potential overloads and is well-suited for the frequent starting and control of AC motors. This product is manufactured in compliance with the GB/T 14048.4 standard.

It is applicable to the direct start and stop control of AC motors with AC 50Hz or 60Hz, rated voltage up to 550V, and rated control power up to 9kW. It can protect the overload and phase failure of cage motors and protect the motors against voltage loss. The magnetic starter shall comply with IEC60947-4-1 and GB/T 14048.4 standards.

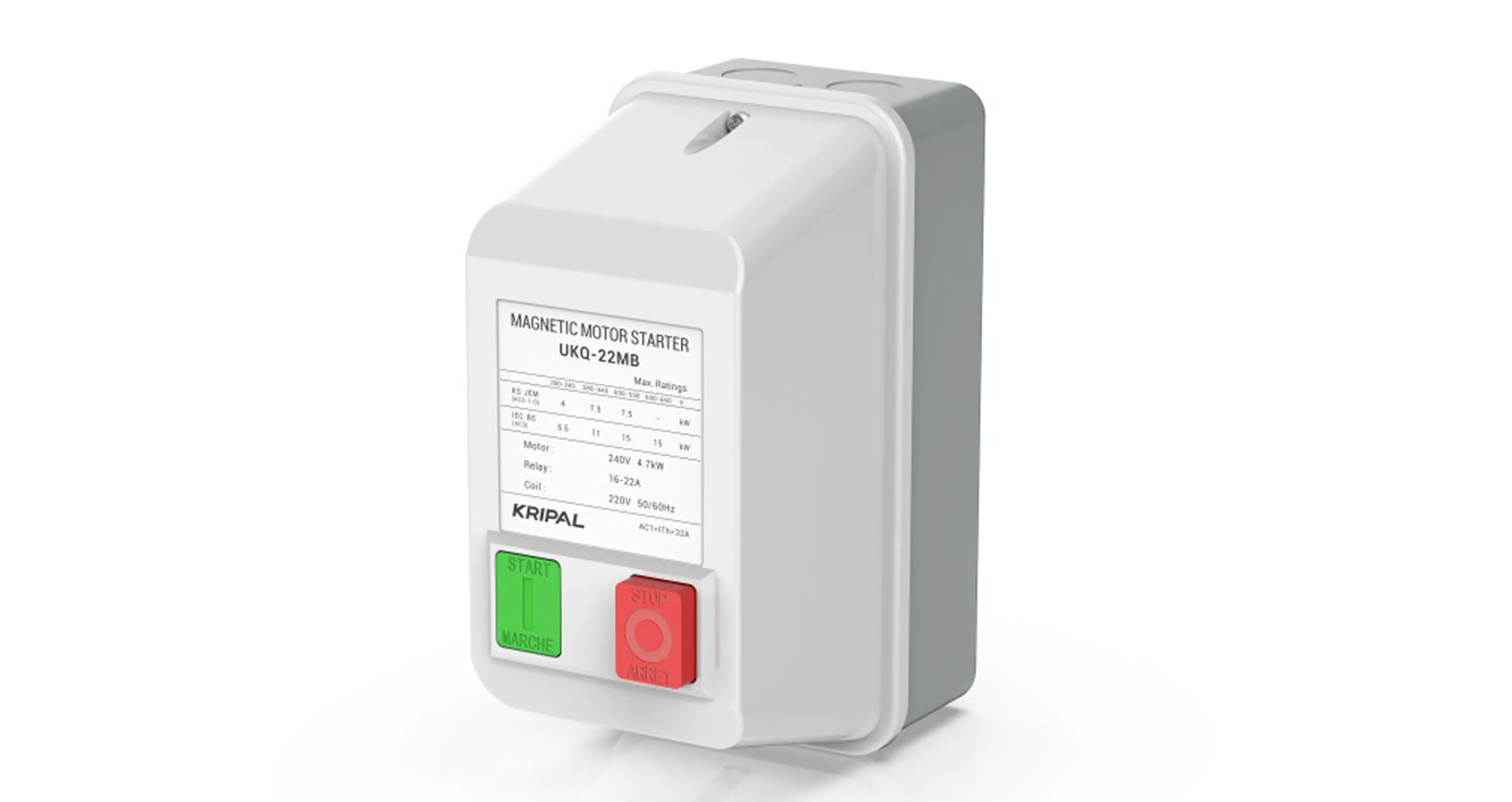

UKQ-22MB Magnetic Starter 9/12/18/22A DOL Starter 3 Phase IP44 UKQ DOL Starter is an integrated electrical control assembly combining a contactor and a thermal overload relay. Designed primarily for three-phase asynchronous motors, it provides reliable start/stop control along with overload and phase-failure protection. As a core component in industrial motor control systems, it ensures automated operation through electromagnetic actuation while delivering robust safety and protective functions.

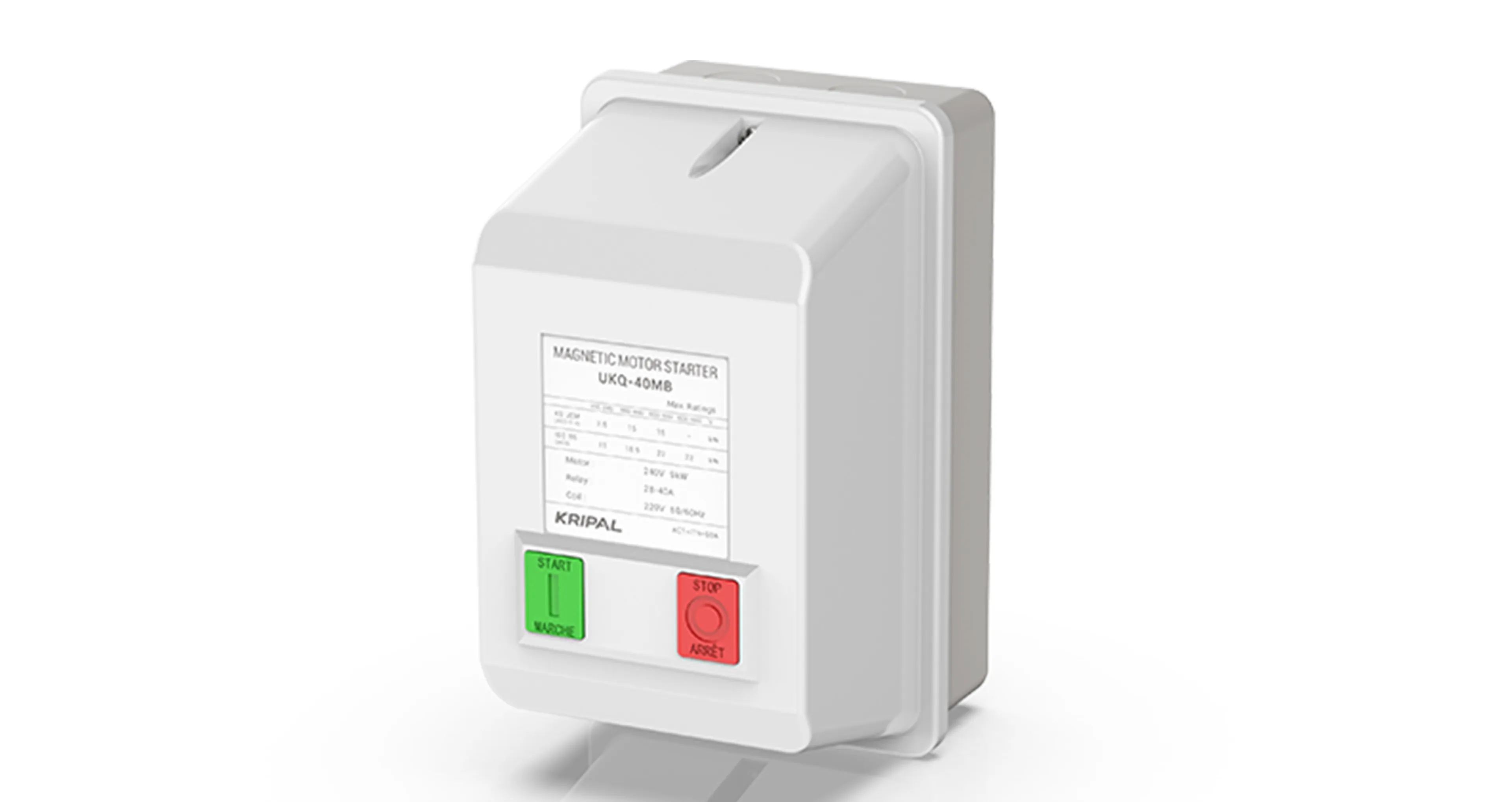

UKQ-40MB Magnetic Starter 32/40A DOL Starter 3 Phase IP44 UKQ DOL Starter is an integrated electrical control assembly combining a contactor and a thermal overload relay. Designed primarily for three-phase asynchronous motors, it provides reliable start/stop control along with overload and phase-failure protection. As a core component in industrial motor control systems, it ensures automated operation through electromagnetic actuation while delivering robust safety and protective functions.

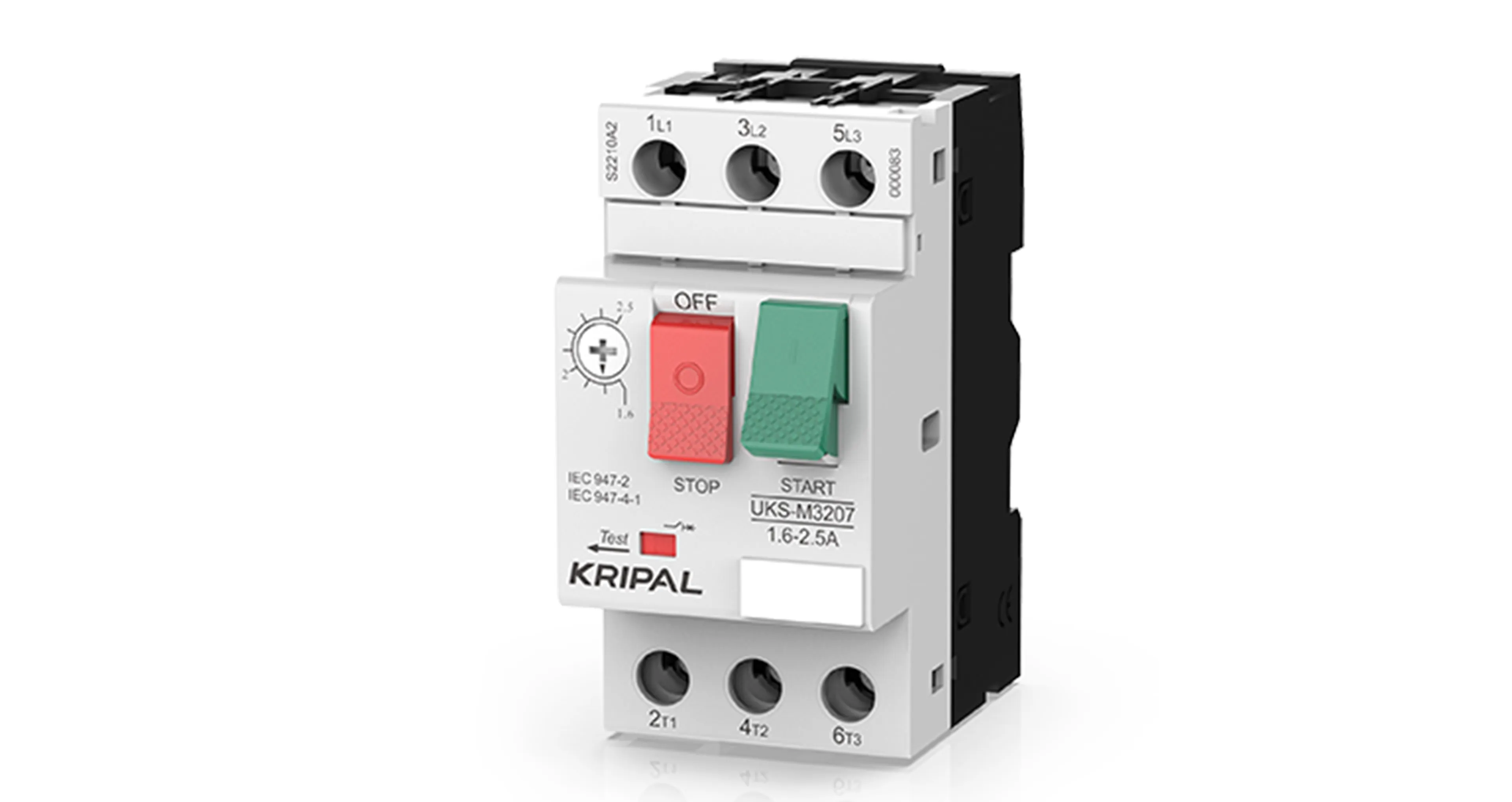

UKS-M32 Motor Protection Circuit Breaker 0.132A 690V Current Adjustment Range 1.6-2.5A UKS-M32 is a thermal-magnetic motor circuit breaker designed primarily for three-phase asynchronous motors. It provides reliable overload protection, short-circuit protection, and manual start-stop control. As a compact device that integrates both control and protection functions in small motor control circuits, it is widely used for motor safety management in industrial and commercial applications.

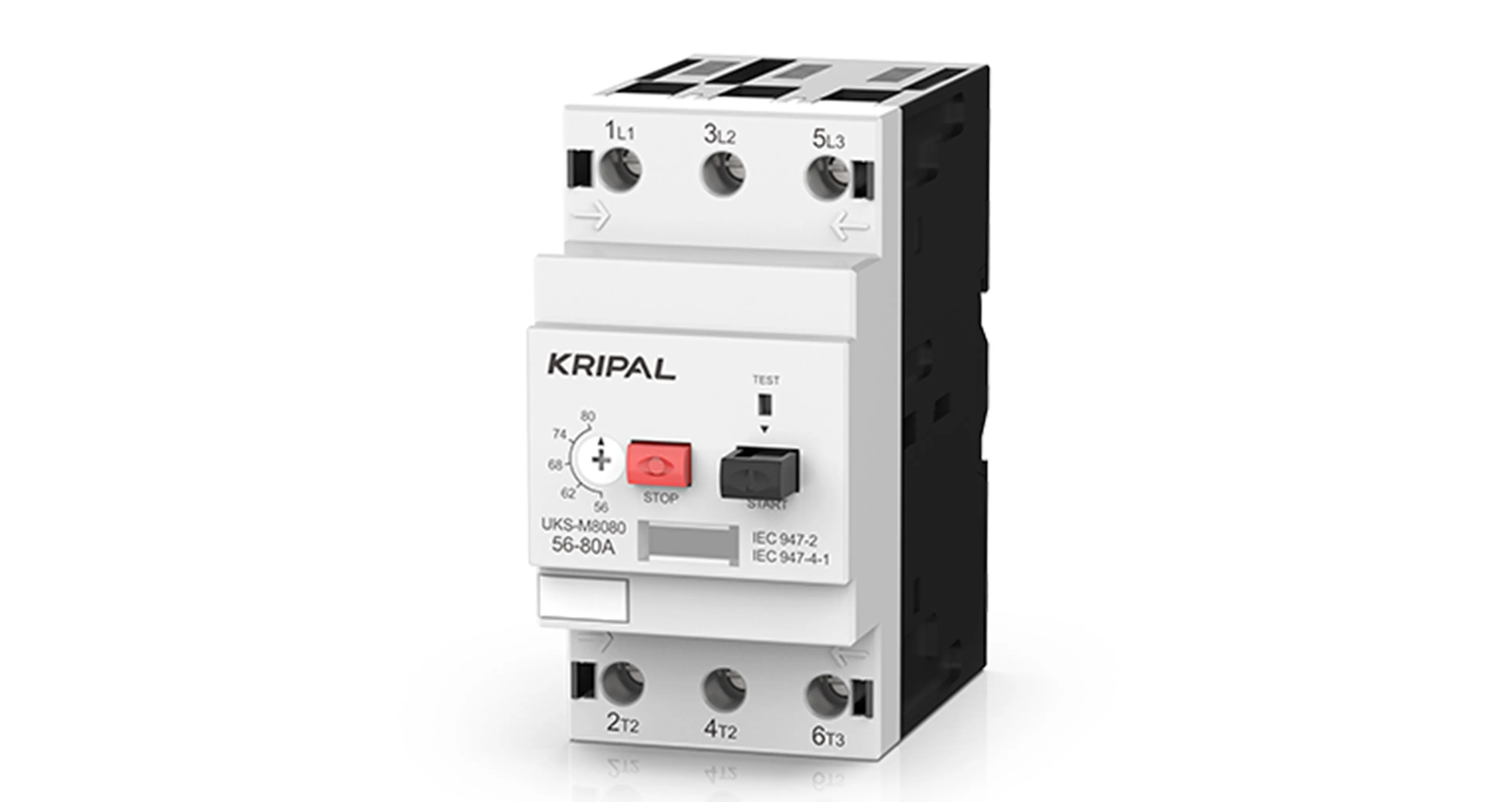

UKS-M80 Motor Protection Circuit Breaker 1680A 690V Current Adjustment Range 56-80A UKS-M32 is a thermal-magnetic motor circuit breaker designed primarily for three-phase asynchronous motors. It provides reliable overload protection, short-circuit protection, and manual start-stop control. As a compact device that integrates both control and protection functions in small motor control circuits, it is widely used for motor safety management in industrial and commercial applications.

UKP Rotary Isolating Switch 3P/4P/5P 10A-100A Panel Mount AC Disconnect Switch The UKP load disconnect switch, compliant with GB/T 14048.3, is designed for distribution and automation systems across general construction, power, petroleum, and chemical industries. It operates at rated voltages from 230V to 440V and handles currents from 10A up to 100A. The UKP Load Disconnect Switch offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

UKP Rotary Isolating Switch 3P/4P/5P 10A-150A DIN Rail AC Disconnect Switch The UKP load disconnect switch, compliant with GB/T 14048.3, is designed for distribution and automation systems across general construction, power, petroleum, and chemical industries. It operates at rated voltages from 230V to 440V and handles currents from 10A up to 150A. The UKP Load Disconnect Switch offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

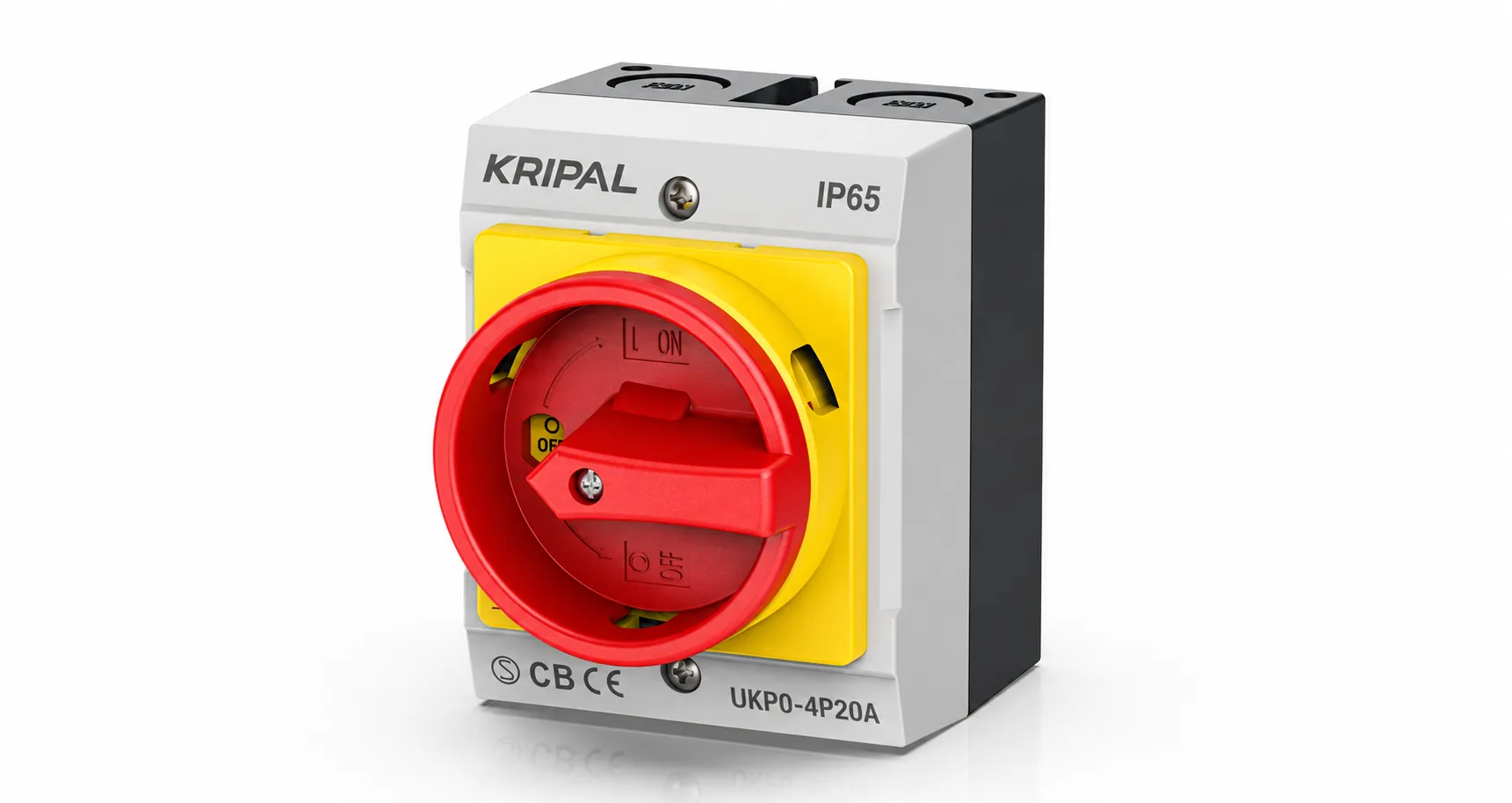

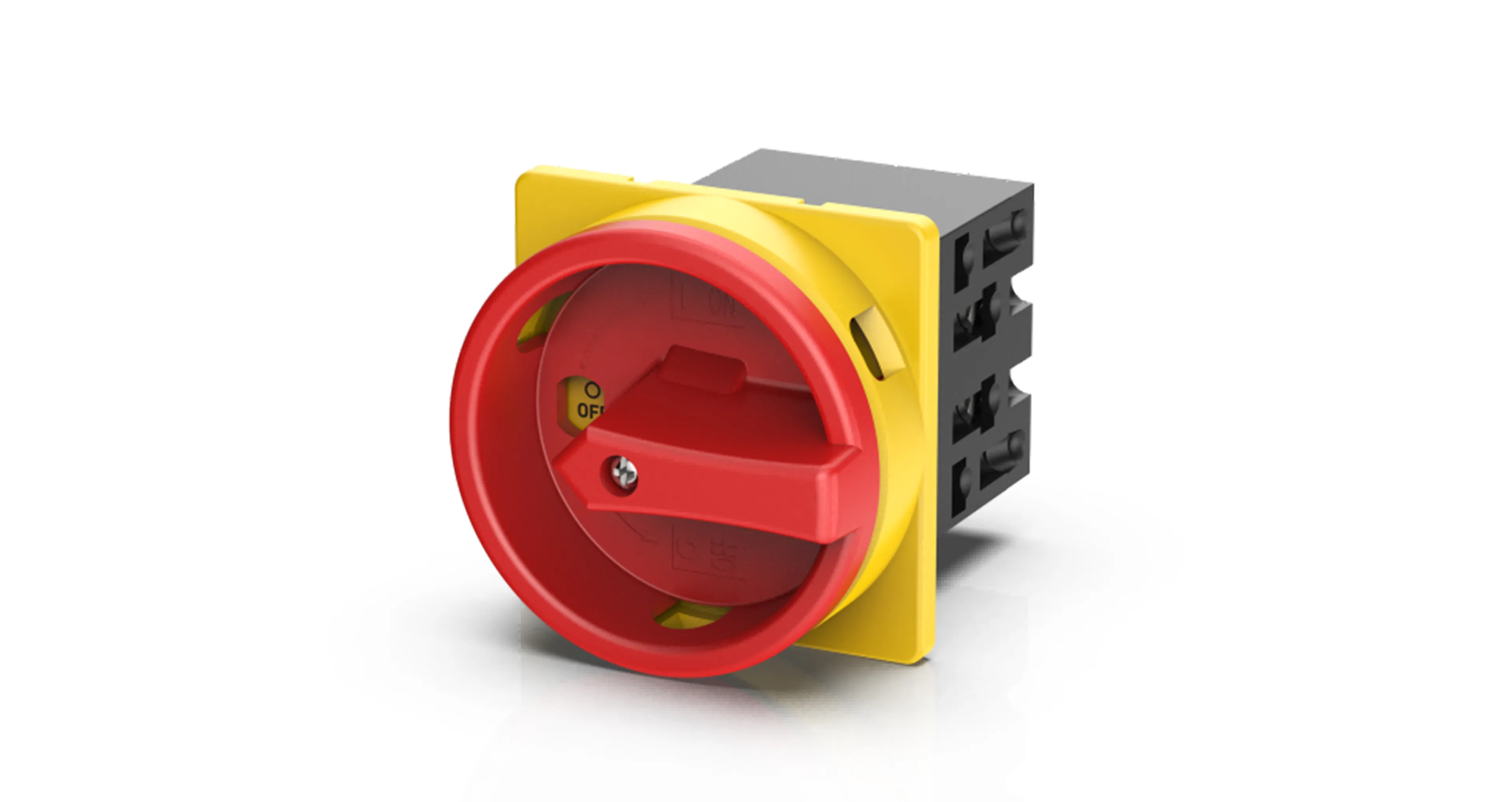

UKP0 Rotary Isolating Switch 2P/3P/4P 10A 16A 20A IP65 AC Disconnect Switch The UKP Load Disconnect Switch is a high-quality product continuously improved with the times. It is consistently designed and manufactured in accordance with the international standard IEC/EN 60947 and has passed testing at KRIPAL’s Low Voltage Testing Center. The UKP Load Disconnect Switch offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

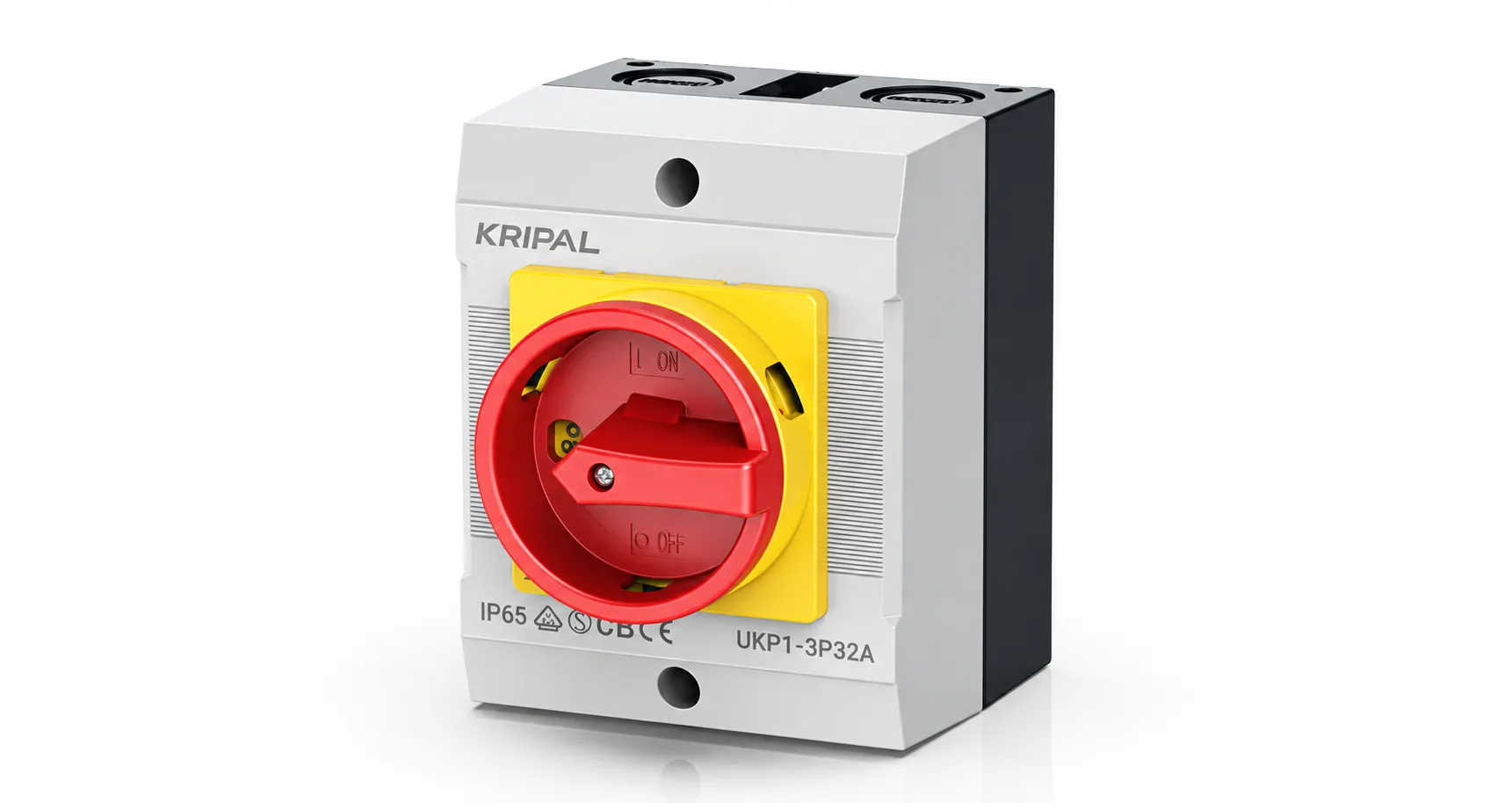

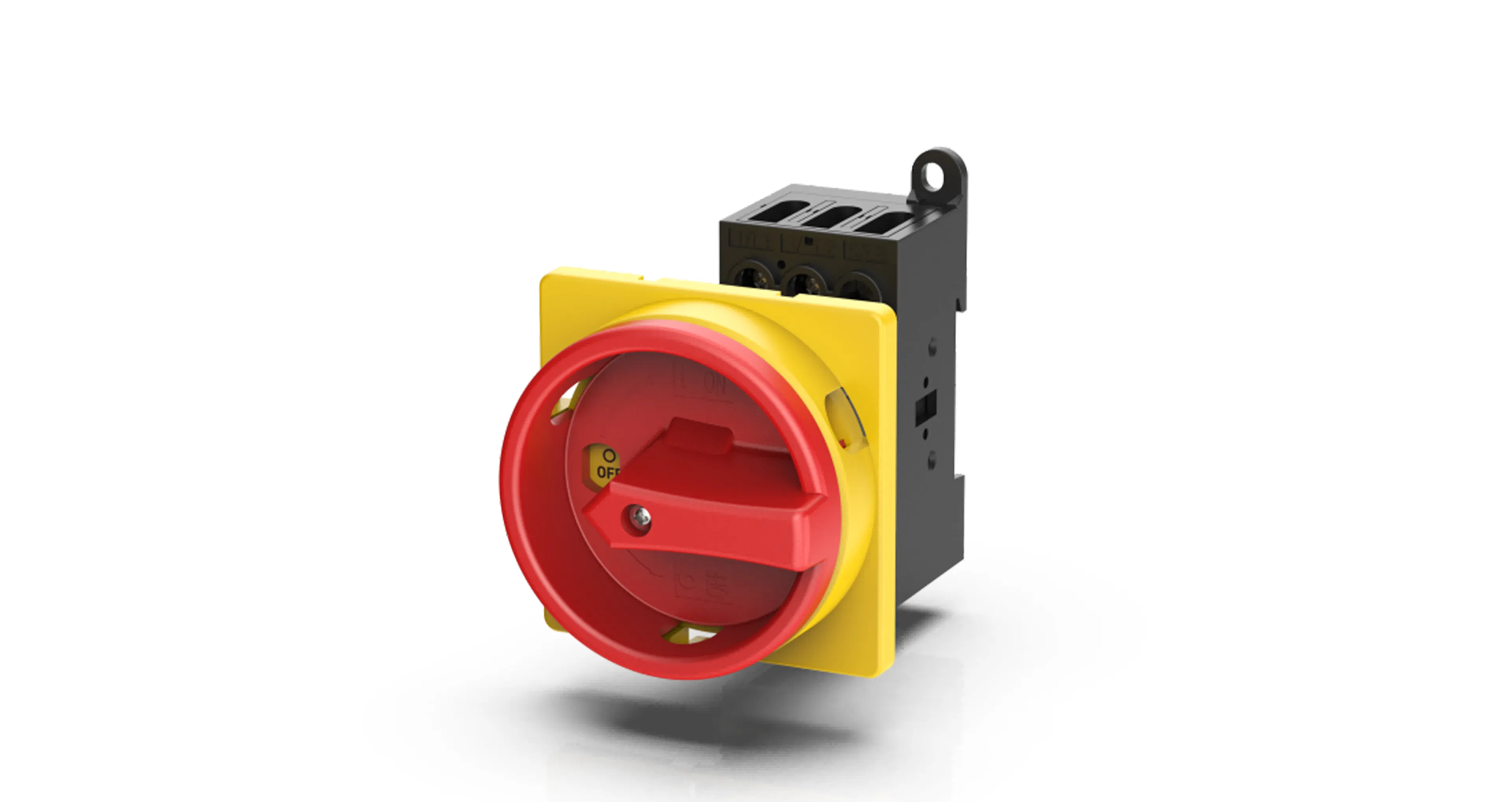

UKP1 Rotary Isolating Switch 3POLE 20A 25A 32A IP65 Load Disconnect Switch 2P/3P/4P/5P The UKP Load Disconnect Switch is a high-quality product continuously improved with the times. It is consistently designed and manufactured in accordance with the international standard IEC/EN 60947 and has passed testing at KRIPAL’s Low Voltage Testing Center. The UKP Load Disconnect Switch offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

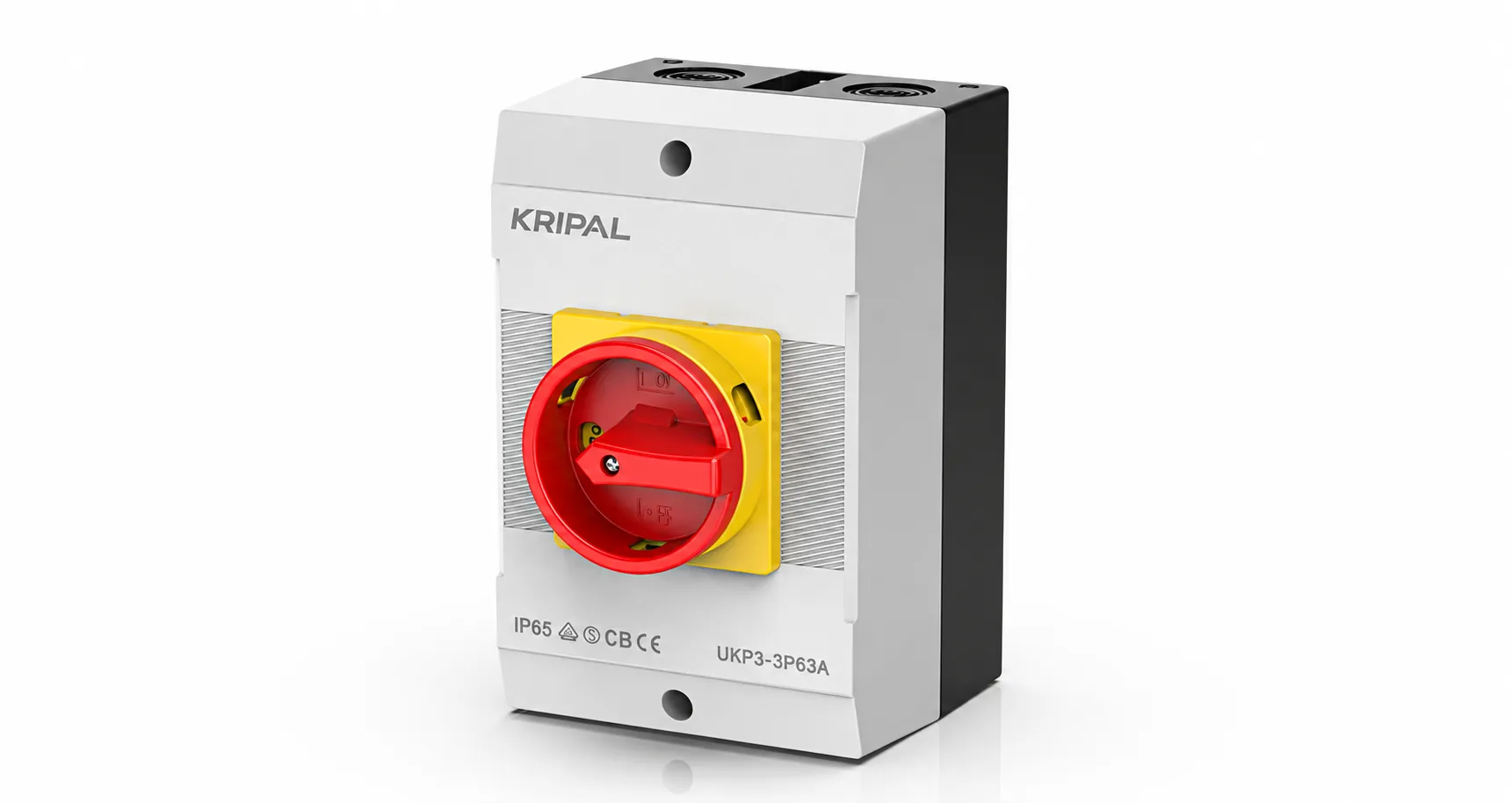

UKP3 Rotary Isolating Switch 3Pole 63A IP65 AC Disconnect Switch 2P/3P/4P/5P The UKP Load Disconnect Switch is a high-quality product continuously improved with the times. It is consistently designed and manufactured in accordance with the international standard IEC/EN 60947 and has passed testing at KRIPAL’s Low Voltage Testing Center. The UKP Load Disconnect Switch offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

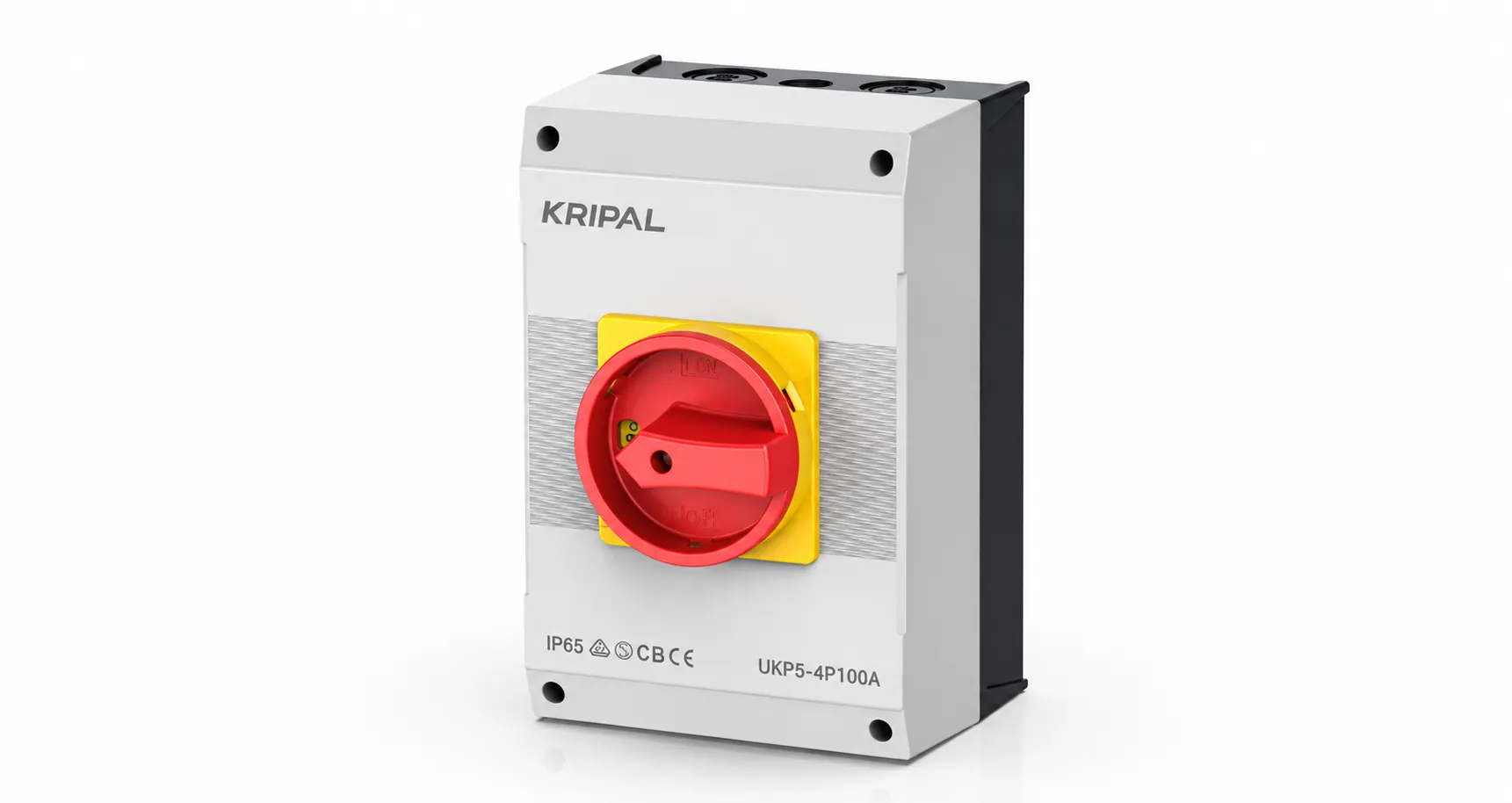

UKP5 Rotary Isolator Switch 4Pole 100A IP65 Disconnect Switch 2P/3P/4P/5P 125A 150A The UKP Load Disconnect Switch is a high-quality product continuously improved with the times. It is consistently designed and manufactured in accordance with the international standard IEC/EN 60947 and has passed testing at KRIPAL’s Low Voltage Testing Center. The UKP Load Disconnect Switch offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

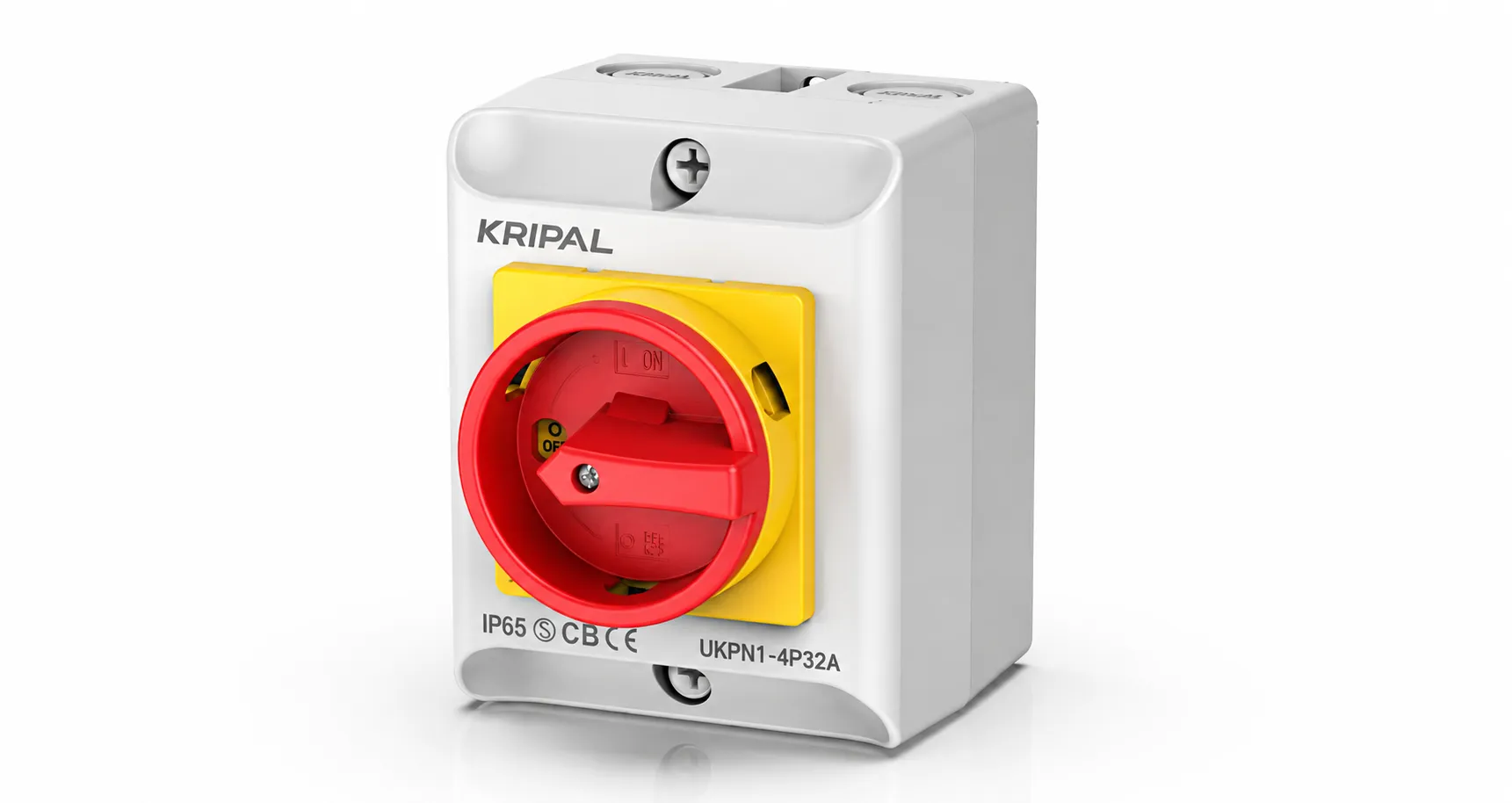

UKPN1 Rotary Isolating Switch 4Pole 20A/25A/32A IP65 Switch Disconnector Waterproof AC Isolator The UKPN Enclosed Isolators is a high-quality product continuously improved with the times. It is consistently designed and manufactured in accordance with the international standard IEC/EN 60947 and has passed testing at KRIPAL’s Low Voltage Testing Center. The UKPN Enclosed Isolators offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

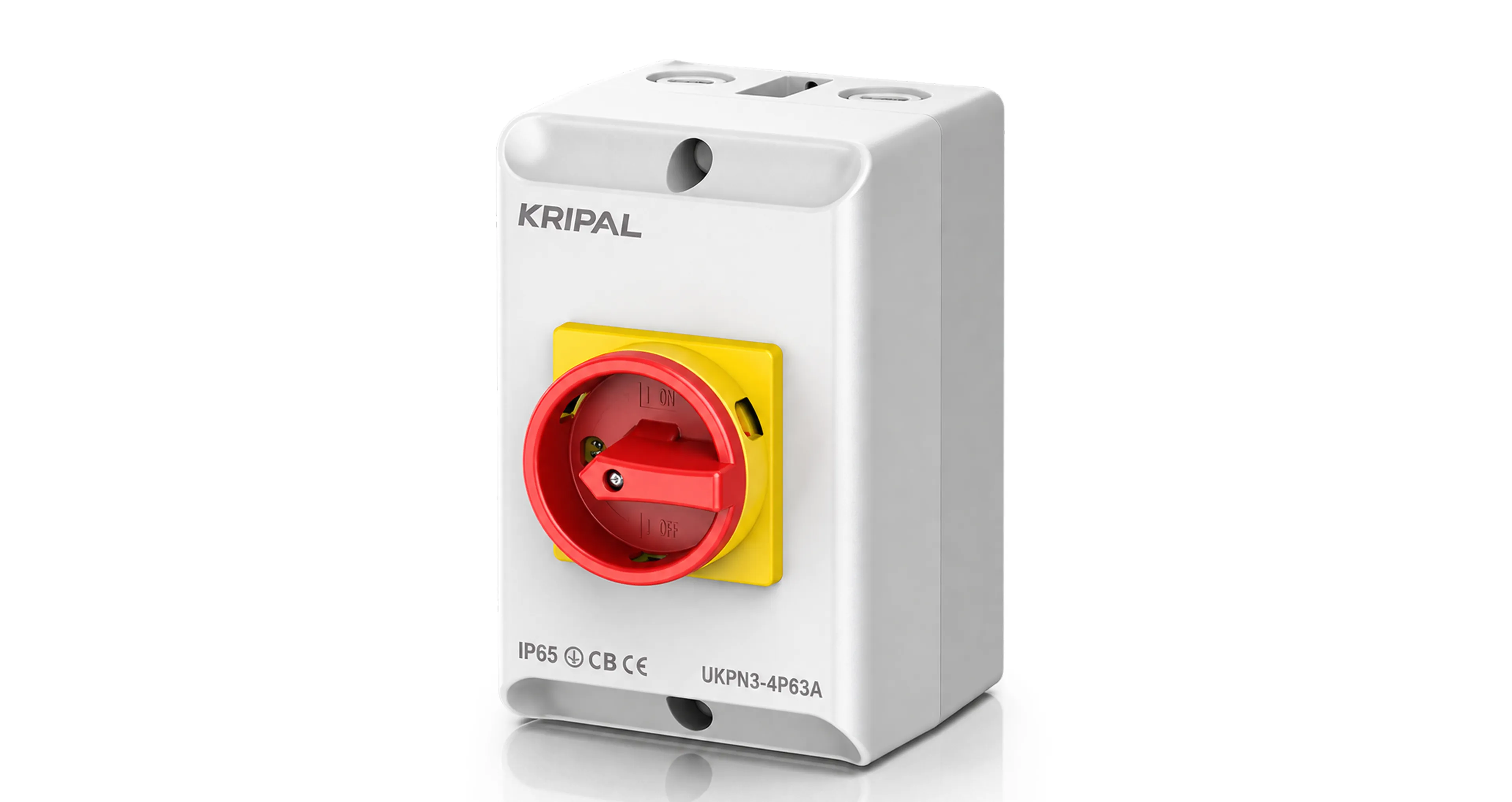

UKPN3 Rotary Isolating Switch 4Pole 63A IP65 Switch Disconnector Waterproof AC Isolator The UKPN Enclosed Isolators is a high-quality product continuously improved with the times. It is consistently designed and manufactured in accordance with the international standard IEC/EN 60947 and has passed testing at KRIPAL’s Low Voltage Testing Center. The UKPN Enclosed Isolators offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

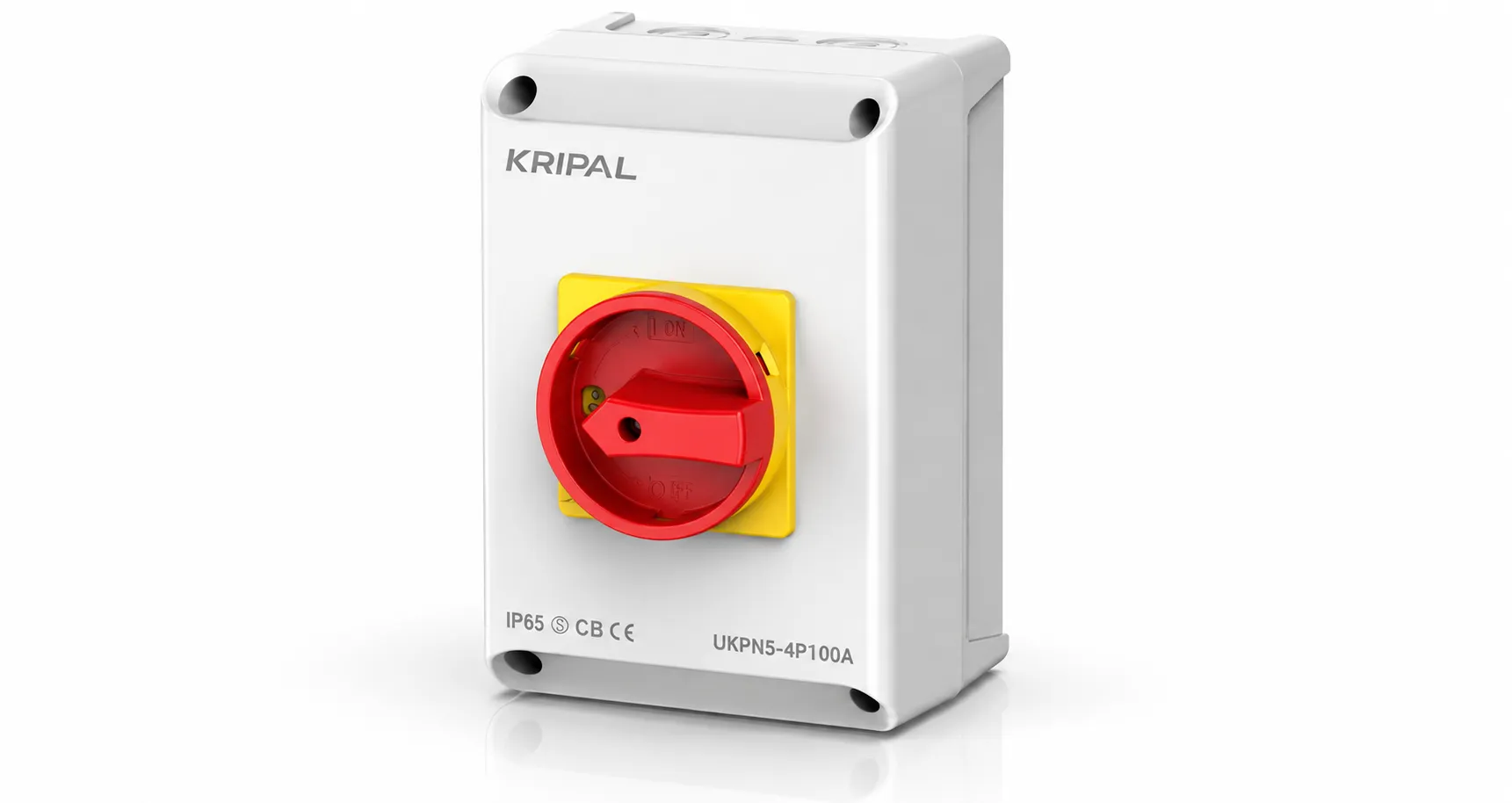

UKPN5 Rotary Isolating Switch 4Pole 100A IP65 Switch Disconnector Waterproof AC Isolator The UKPN Enclosed Isolators is a high-quality product continuously improved with the times. It is consistently designed and manufactured in accordance with the international standard IEC/EN 60947 and has passed testing at KRIPAL’s Low Voltage Testing Center. The UKPN Enclosed Isolators offers contact combinations, providing almost limitless switching configuration possibilities. This highlights its exceptional application flexibility. Furthermore, KRIPAL prioritizes safety and reliability throughout the switch design process. For instance, terminals equipped with protective covers comply with VDE 0106, ensuring touch-safe operation.

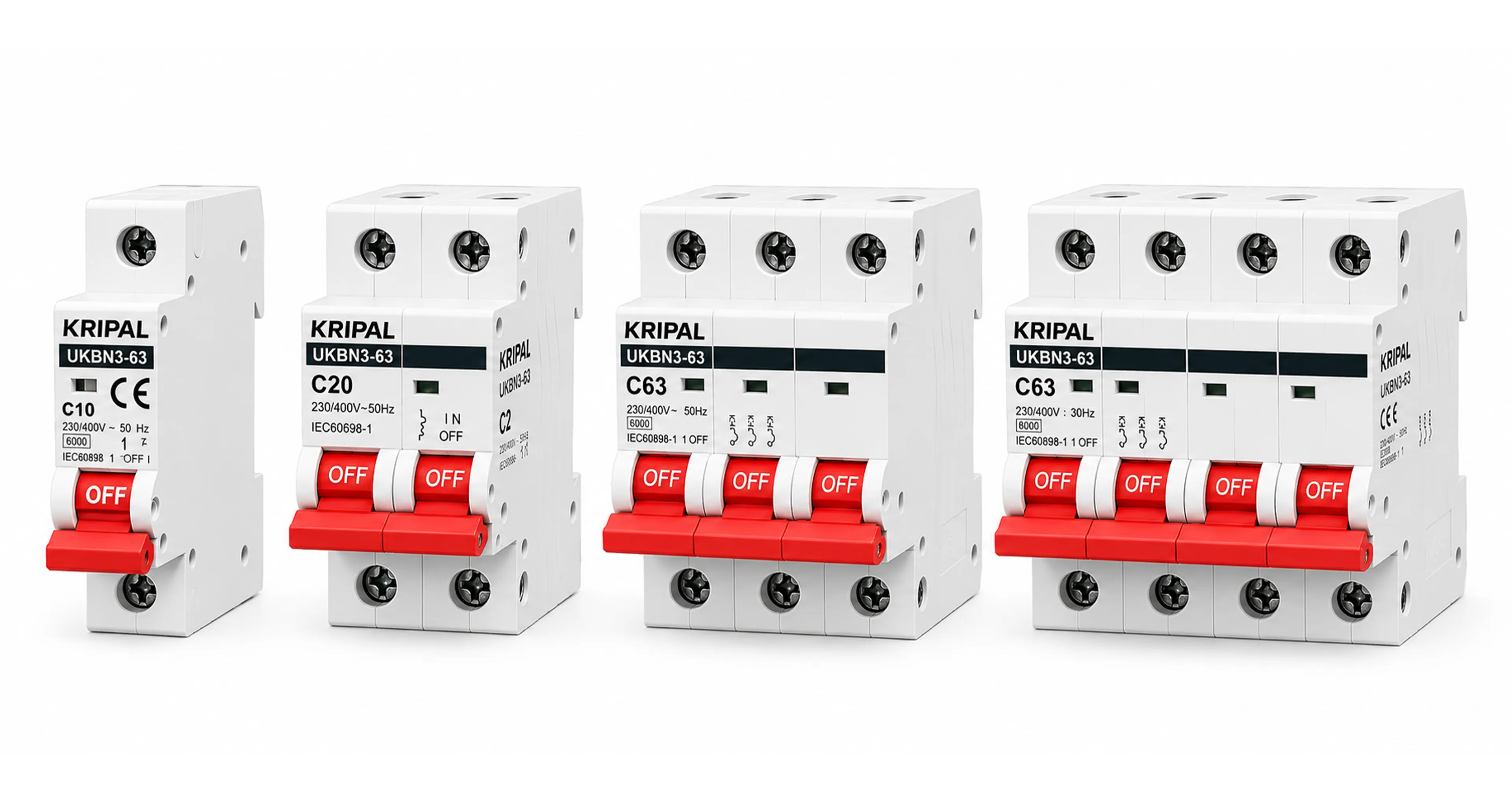

KRIPAL UKBN3-63 Miniature Circuit Breaker (MCB) The KRIPAL UKBN3-63 MCB provides overload and short-circuit protection for electrical circuits. Shown in 1P, 2P, 3P and 4P configurations, its compact design and linked red operating handles make it a practical choice for electrical distribution panels.

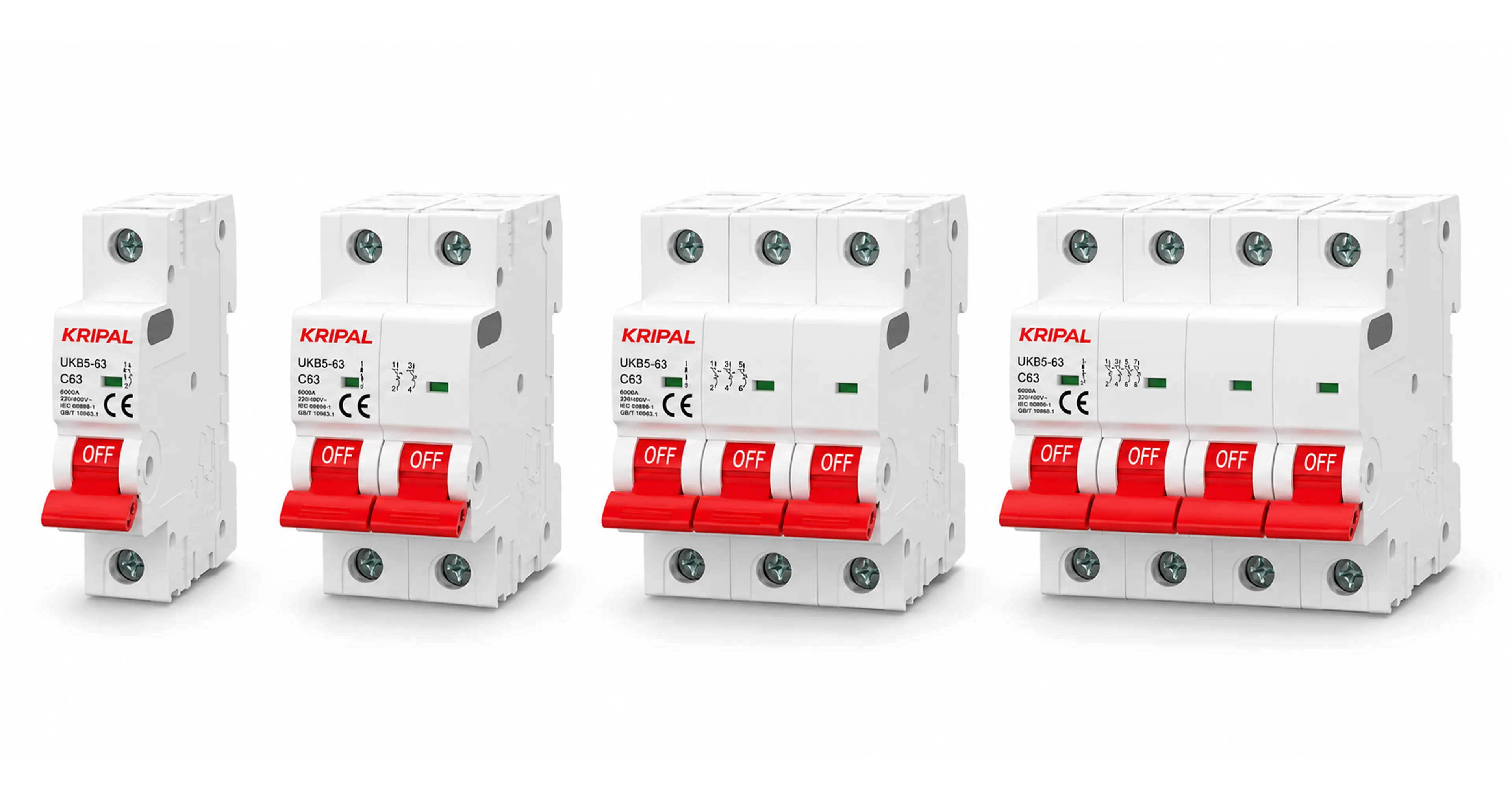

KRIPAL UKB5-63 Miniature Circuit Breaker (MCB) The KRIPAL UKB5-63 MCB provides overload and short-circuit protection for residential and commercial electrical circuits. Available in 1P, 2P, 3P and 4P configurations, it features a compact DIN-rail design for installation in distribution boards. Its 6kA breaking capacity and contact status indicator support circuit protection and clear status identification.

The current tripping setting is accurate, and the breaking capacity is up to 10kA. With extremely high current limiting capacity, it can achieve high selectivity. Double terminals on both sides are suitable for bus bars and single core conductors. Bus bar multi-function accessory series can be used on both sides. The connecting screw of the composite groove has large torque. The connection is firm and fast. The incoming direction of the power supply is arbitrary. With DC products, it can be widely used in the fields of telecommunications or electric locomotives. This product complies with the latest standards IEC898 and GB/T 10963.1

It is applicable to over-current protection of power line facilities and electrical equipment with AC 50Hz, rated voltage up to 400V and rated working current up to 100A & 125A. In case of special requirements, the signal control tripping function can be added to perform remote control breaking or automatic signal control breaking for the line. At present, the signal control tripping function is widely used in IC card prepayment meters to control the circuit on and off. This product complies with GB/T 14048.2.

Dual function terminal blocks on both sides can be connected to bus bar and single core conductor at the same time; Multiple leakage action current specifications, easy to achieve selective protection; It can prevent misoperation caused by switching operation of electronic equipment; This product complies with IEC161008-1 and GB/T 16916.1.

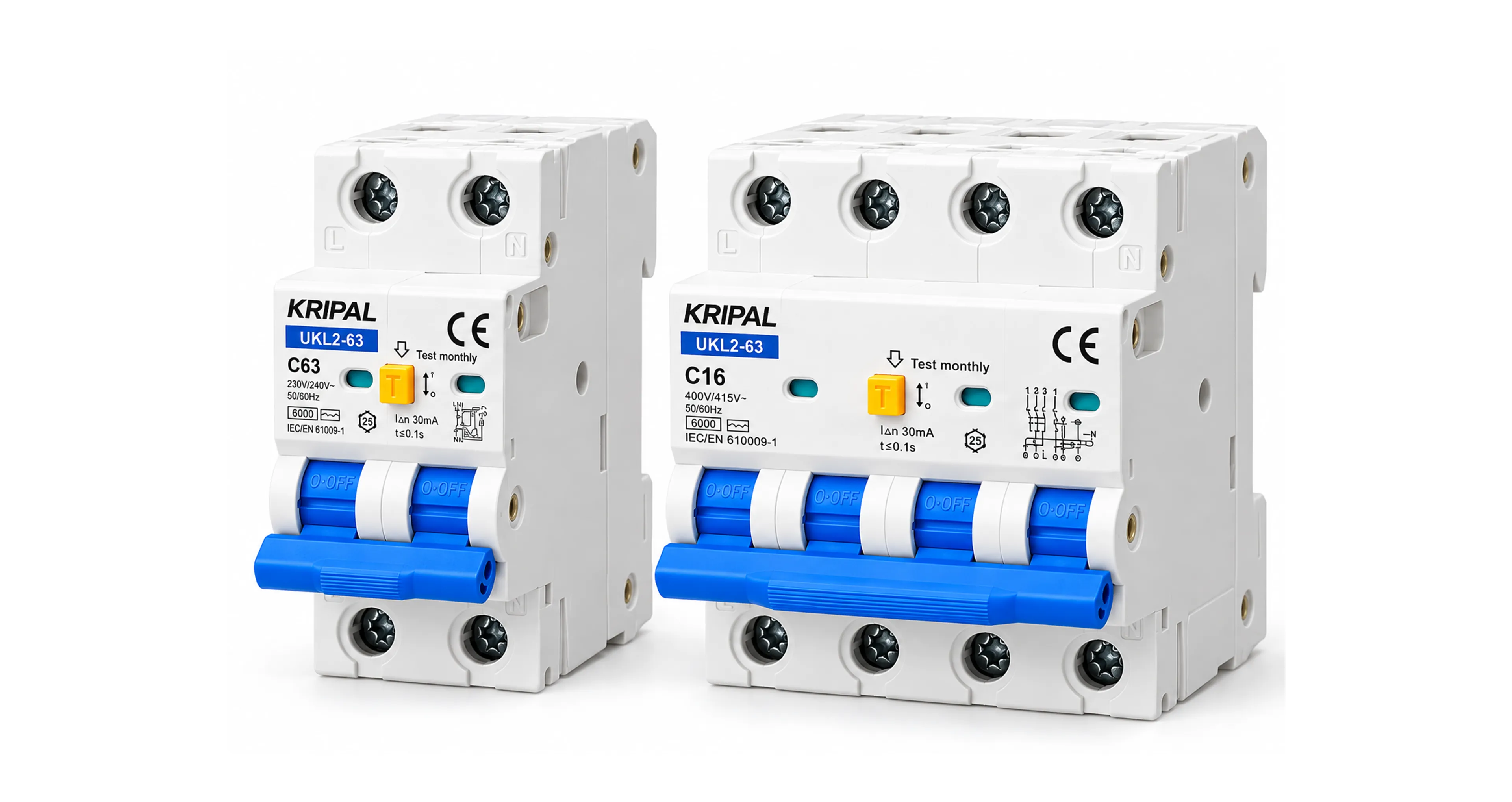

UKL2-63 RCBO 1P+N C63 30mA Residual Current Breaker with Overcurrent protection UKL2-63 Residual Current Breaker The UKL2-63 RCBO (Residual Current Operated Circuit-Breaker with Overcurrent protection) is a highly efficient and compact electrical safety device. It integrates the functions of a Miniature Circuit Breaker (MCB) and a Residual Current Device (RCD) into one single unit. This 1-Pole, C-Curve, 63A rated current breaker with a 30mA trip sensitivity is engineered to provide comprehensive protection for modern residential, commercial, and light industrial electrical systems, offering a space-saving and cost-effective safety solution.

This product is a high-tech product facing the 21st century. The product has advanced design and high performance index; Beautiful appearance; Small volume; Comply with GB/T 14048.2 Low voltage Switchgear and Control Equipment Low voltage Circuit Breakers and IEC60947-2 Low voltage Switchgear and Control Equipment Part II: Low voltage Circuit Breakers and other standards.

This product is a high-tech product facing the 21st century. The product has advanced design and high performance index; Beautiful appearance; Small volume; Comply with GB/T 14048.2 Low voltage Switchgear and Control Equipment Low voltage Circuit Breakers and IEC60947-2 Low voltage Switchgear and Control Equipment Part II: Low voltage Circuit Breakers and other standards.

This product is a high-tech product facing the 21st century. The product has advanced design and high performance index; Beautiful appearance; Small volume; Comply with GB/T 14048.2 Low voltage Switchgear and Control Equipment Low voltage Circuit Breakers and IEC60947-2 Low voltage Switchgear and Control Equipment Part II: Low voltage Circuit Breakers and other standards.

This product is a high-tech product facing the 21st century. The product has advanced design and high performance index; Beautiful appearance; Small volume; Comply with GB/T 14048.2 Low voltage Switchgear and Control Equipment Low voltage Circuit Breakers and IEC60947-2 Low voltage Switchgear and Control Equipment Part II: Low voltage Circuit Breakers and other standards.

This product is a high-tech product facing the 21st century. The product has advanced design and high performance index; Beautiful appearance; Small volume; Comply with GB/T 14048.2 Low voltage Switchgear and Control Equipment Low voltage Circuit Breakers and IEC60947-2 Low voltage Switchgear and Control Equipment Part II: Low voltage Circuit Breakers and other standards.

This product is a high-tech product facing the 21st century. The product has advanced design and high performance index; Beautiful appearance; Small volume; Comply with GB/T 14048.2 Low voltage Switchgear and Control Equipment Low voltage Circuit Breakers and IEC60947-2 Low voltage Switchgear and Control Equipment Part II: Low voltage Circuit Breakers and other standards.

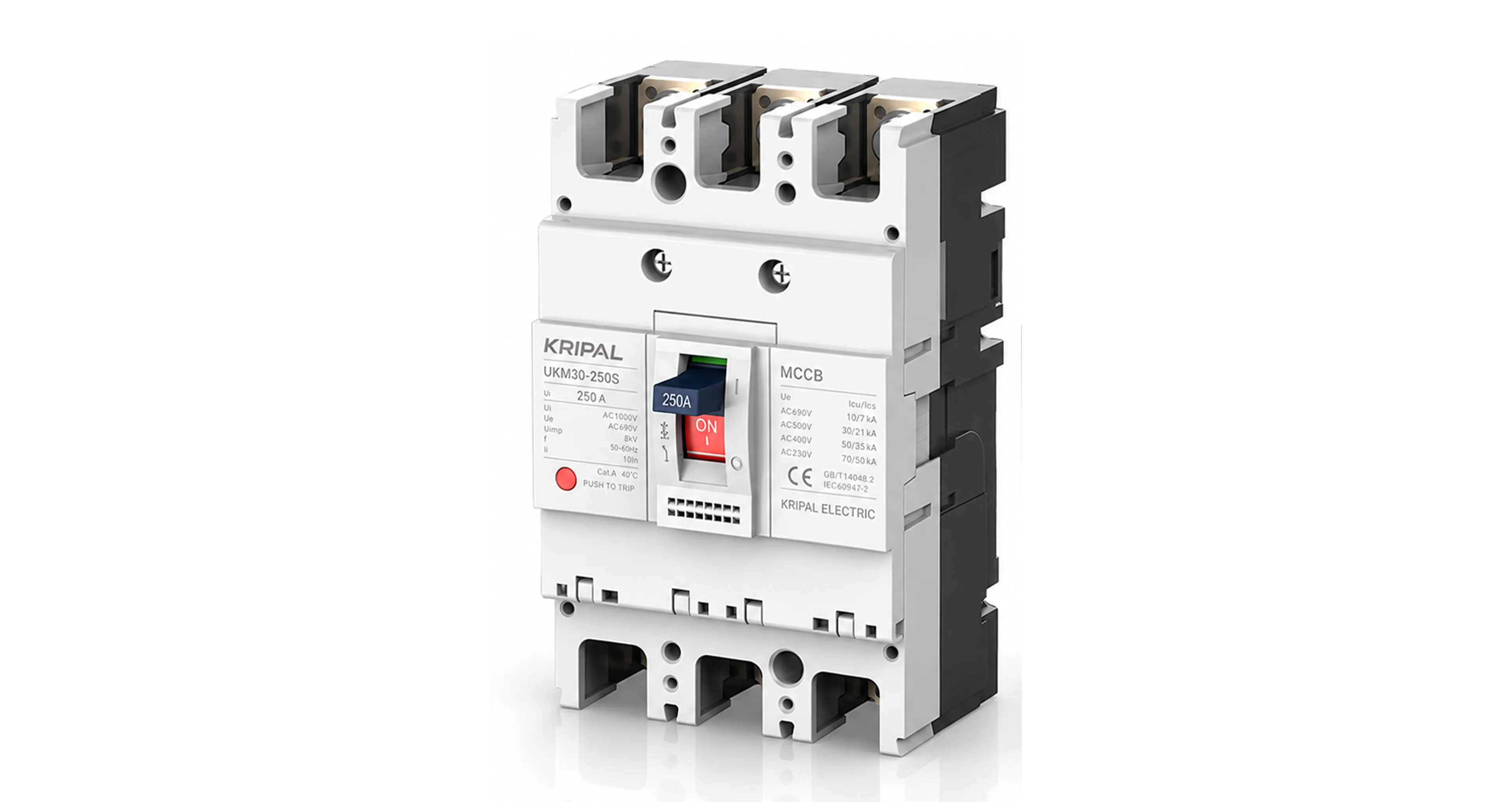

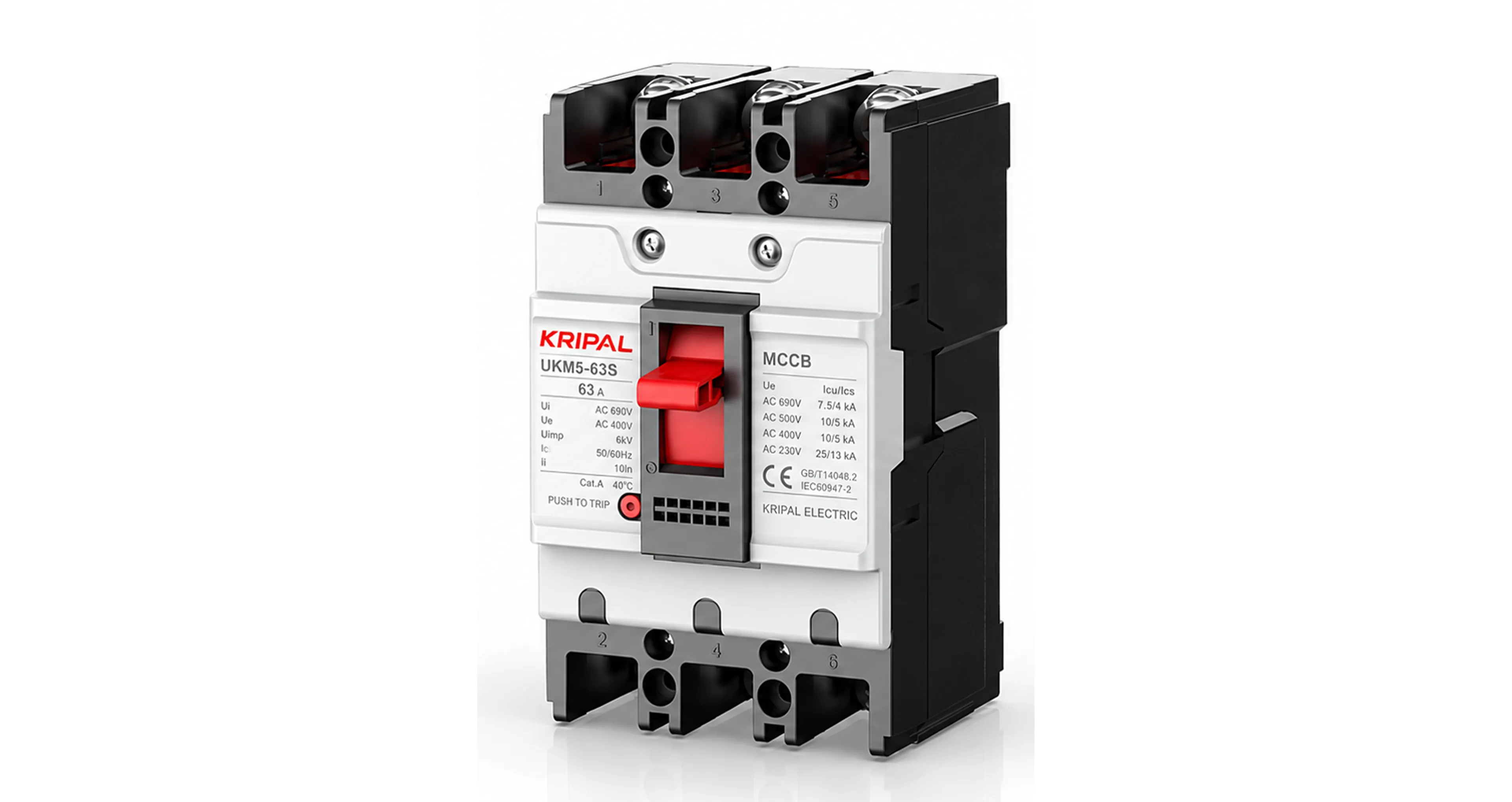

It is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 1600A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

It is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 1600A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

It is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 1600A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

It is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 1600A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

It is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 1600A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

It is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 1600A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

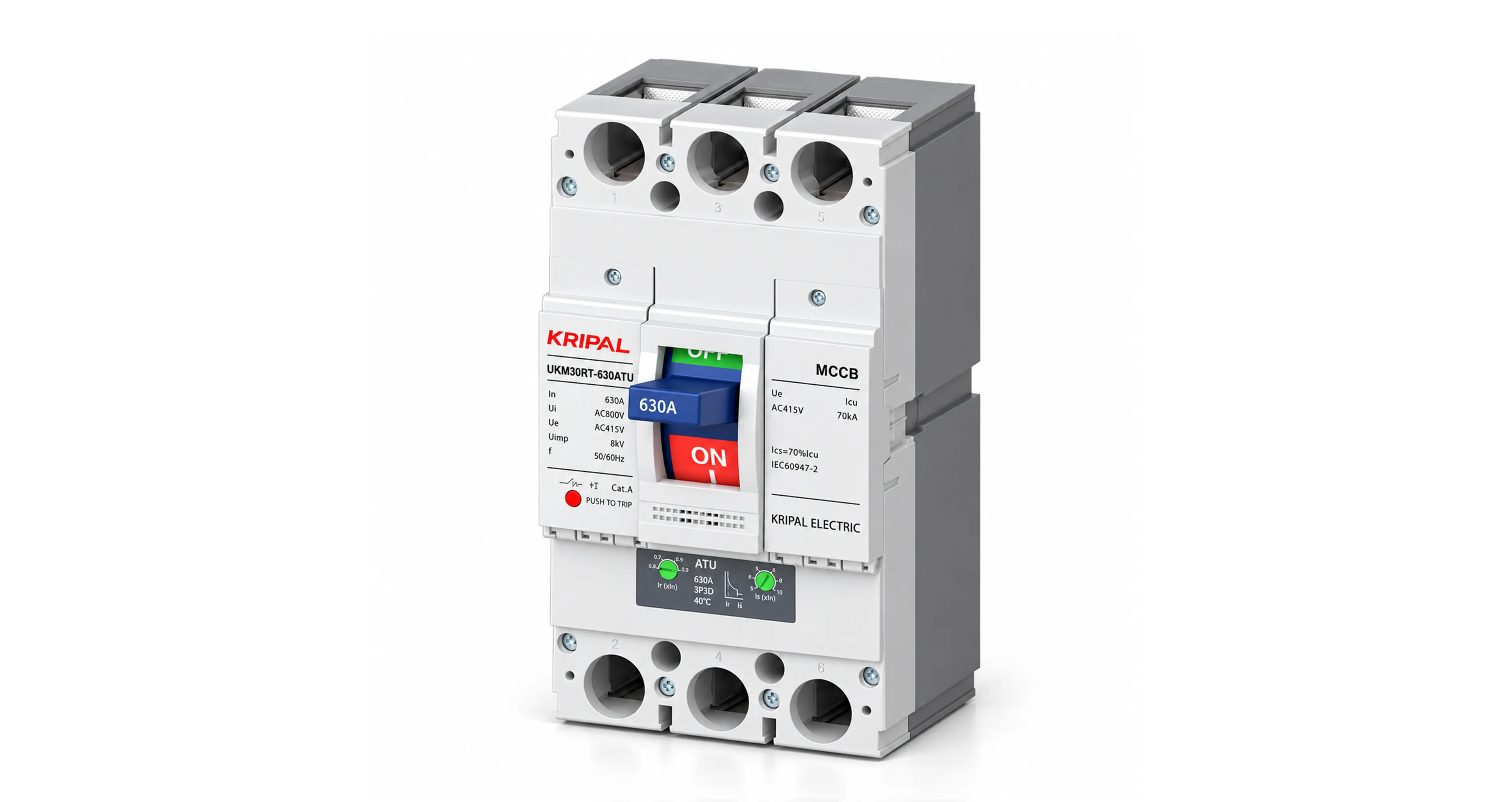

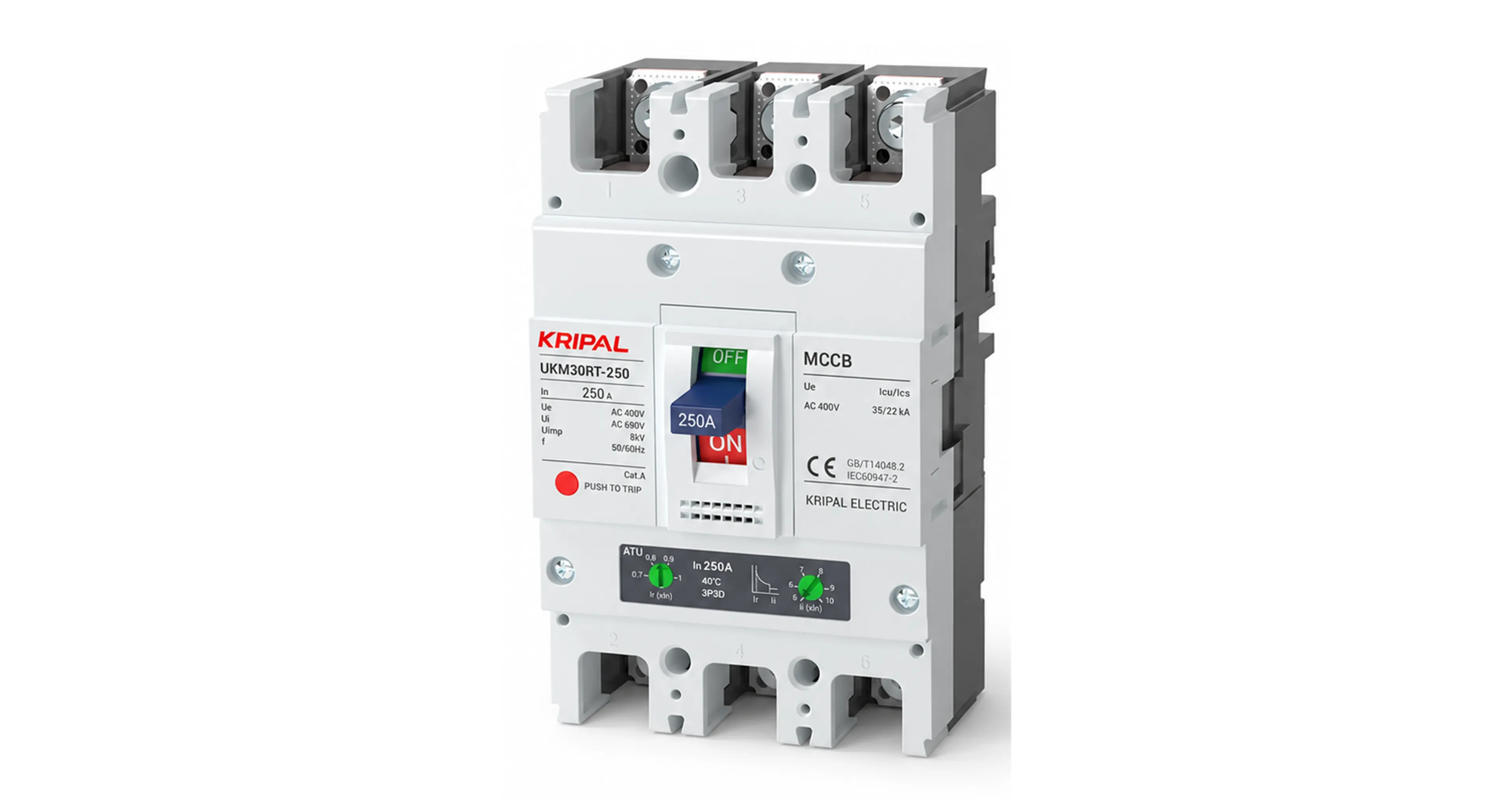

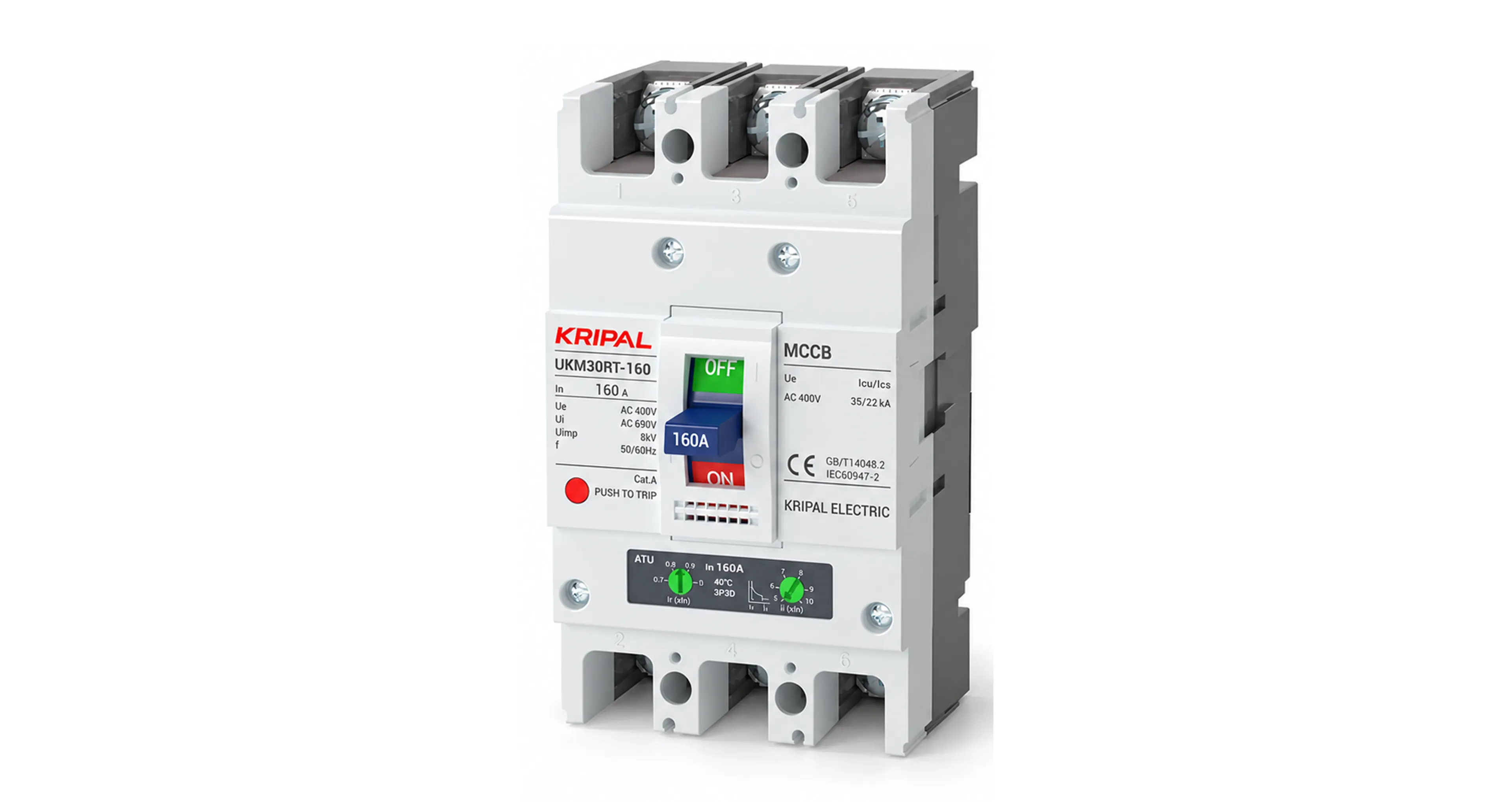

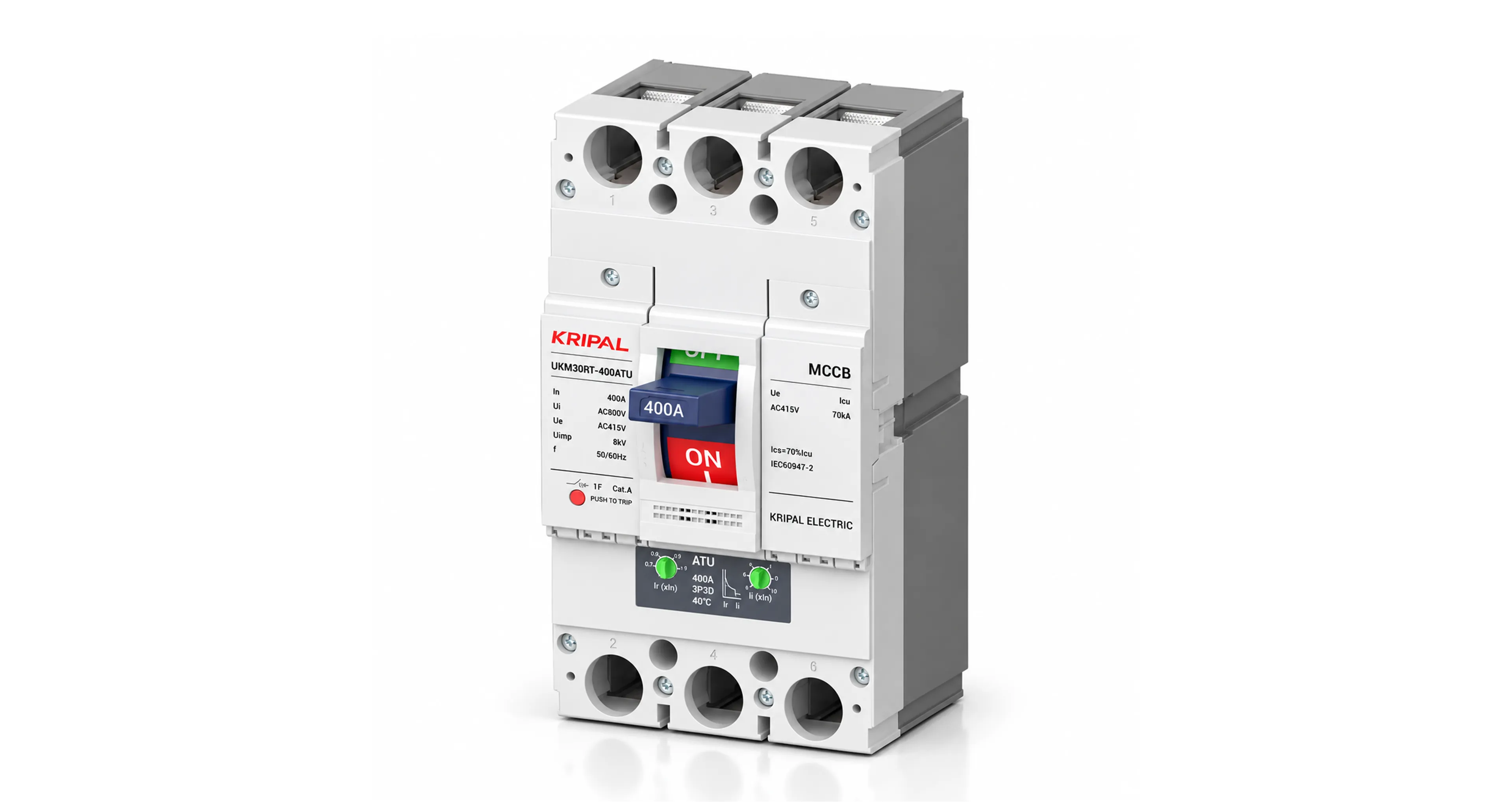

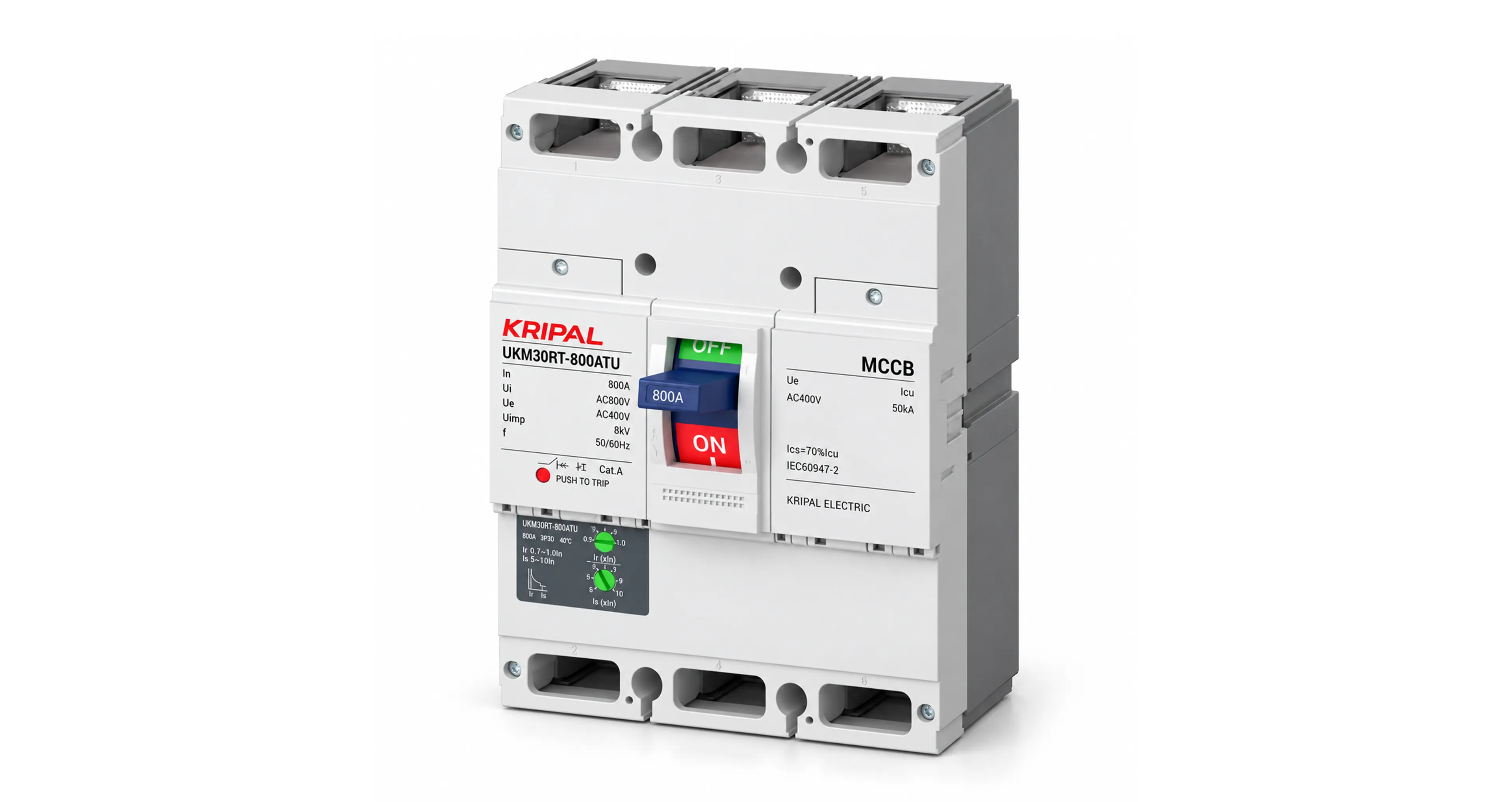

UKM30RT Series MCCB is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 800A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. Flexibly adjust "Ir" and "Ii" as needed to cope with large load changes and different types of protected loads in the protection circuit. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

UKM30RT Series MCCB is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 800A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. Flexibly adjust "Ir" and "Ii" as needed to cope with large load changes and different types of protected loads in the protection circuit. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

UKM30RT Series MCCB is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 800A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. Flexibly adjust "Ir" and "Ii" as needed to cope with large load changes and different types of protected loads in the protection circuit. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

UKM30RT Series MCCB is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 800A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. Flexibly adjust "Ir" and "Ii" as needed to cope with large load changes and different types of protected loads in the protection circuit. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

UKM30RT Series MCCB is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage to AC690V, and rated working current to 800A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. Flexibly adjust "Ir" and "Ii" as needed to cope with large load changes and different types of protected loads in the protection circuit. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries.

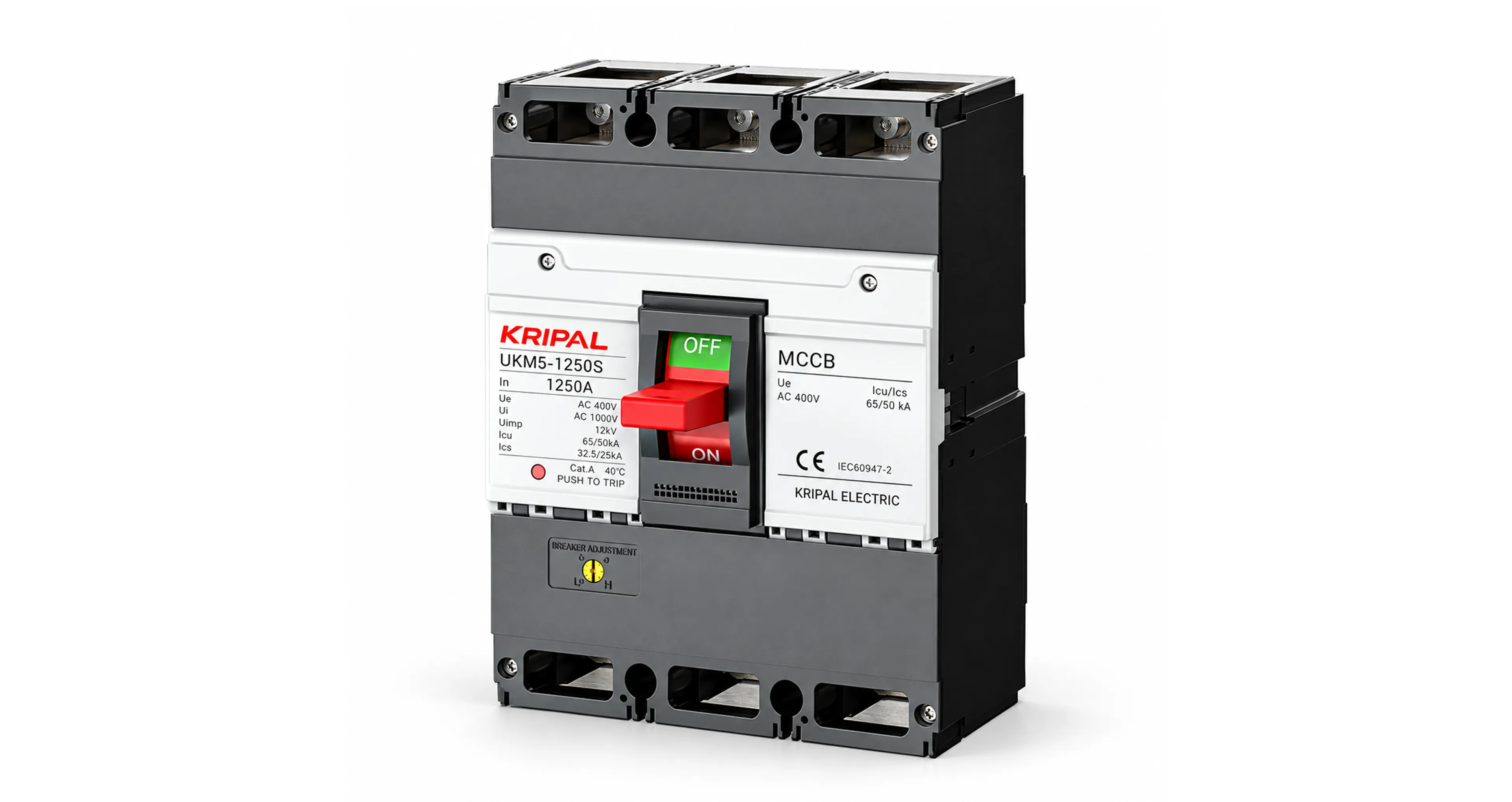

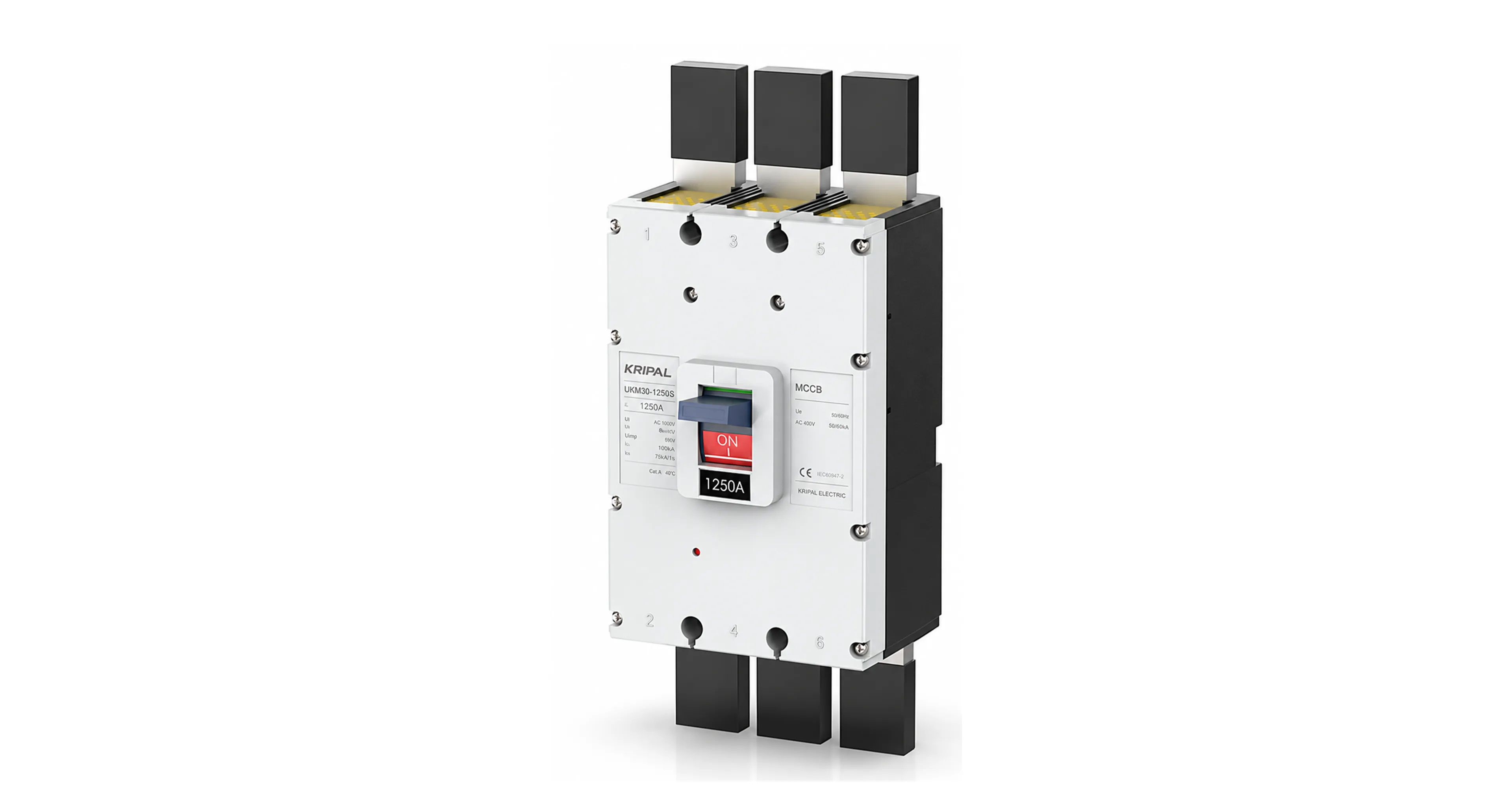

This product is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage of AC750V and rated working current of 1250A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries. The products are designed with new technologies such as series double breakpoints and air pressure breaking to achieve high breaking, zero flashover, small size and other product features. The difference of the product's incoming and outgoing modes (upper incoming and lower incoming) does not affect the product characteristics and the safety guarantee of product use.

This product is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage of AC750V and rated working current of 1250A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries. The products are designed with new technologies such as series double breakpoints and air pressure breaking to achieve high breaking, zero flashover, small size and other product features. The difference of the product's incoming and outgoing modes (upper incoming and lower incoming) does not affect the product characteristics and the safety guarantee of product use.

This product is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage of AC750V and rated working current of 1250A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries. The products are designed with new technologies such as series double breakpoints and air pressure breaking to achieve high breaking, zero flashover, small size and other product features. The difference of the product's incoming and outgoing modes (upper incoming and lower incoming) does not affect the product characteristics and the safety guarantee of product use.

This product is suitable for infrequent switching in circuits with AC 50/60Hz, rated working voltage of AC750V and rated working current of 1250A, and infrequent starting of motors. The circuit breaker has overload, short circuit and undervoltage protection functions, and can protect lines and power equipment from damage. The products are widely used in new energy, power, industrial control, real estate, power supply, telecommunications, rail transit, engineering (public) construction and other industries. The products are designed with new technologies such as series double breakpoints and air pressure breaking to achieve high breaking, zero flashover, small size and other product features. The difference of the product's incoming and outgoing modes (upper incoming and lower incoming) does not affect the product characteristics and the safety guarantee of product use.

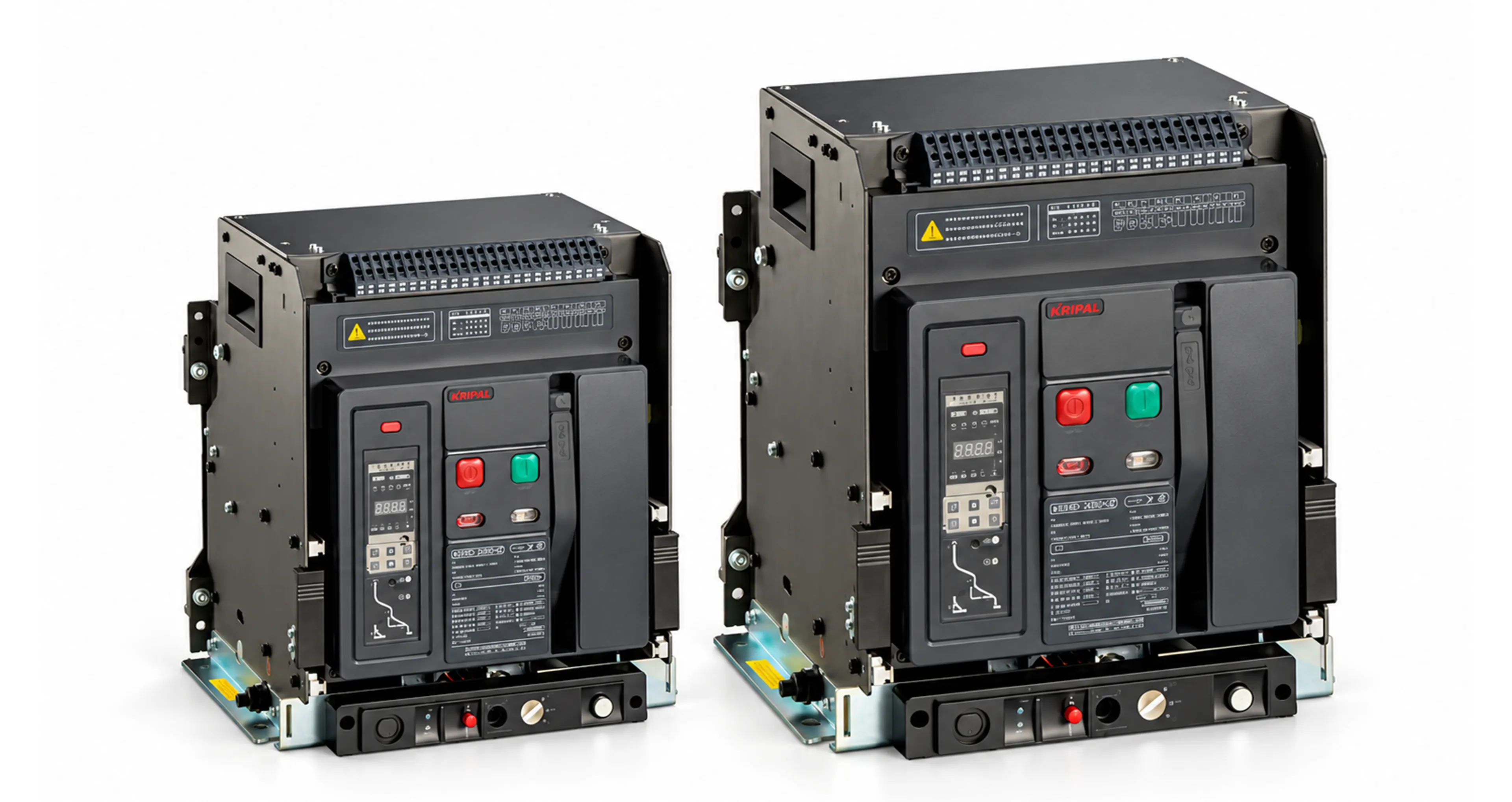

Air Circuit Breakers (ACB) | 630A-7500A | Draw-Out Type | IEC 60947-2 High-Capacity Protection from a Professional Factory KRIPAL’s UKDW1 series air circuit breakers (ACBs) provide robust power distribution protection, offering rated currents from 630A to 7500A (Inm=1600/2500/4000/7500) per IEC 60947-2. The UKDW1 features advanced electronic trip units (IC5.0(M), IC7.0(3M), IC8.0(3H)) for real-time monitoring and comprehensive protection, including L, S, I, and G functions with configurable curves. The ACB utilizes a stored-energy spring mechanism for consistent, operator-independent closing speeds. Available in fixed (F) and draw-out (D) versions with 3P and 4P configurations, the UKDW1 supports field bus integration for remote measurement, control, and signaling within SCADA systems. Certified to IEC 60947-2, KRIPAL ACBs serve as reliable incoming and bus-coupler devices for industrial plants, data centers, and large-scale infrastructure projects.
